BDNC (HOLDING) LIMITEDUnited Kingdom

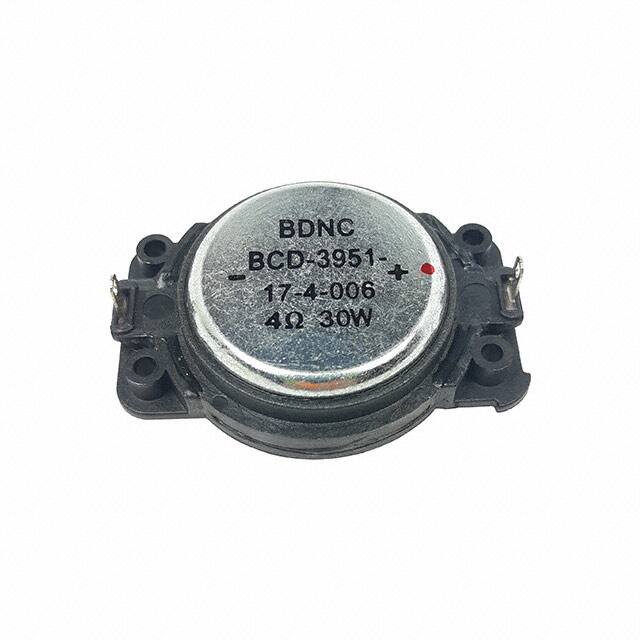

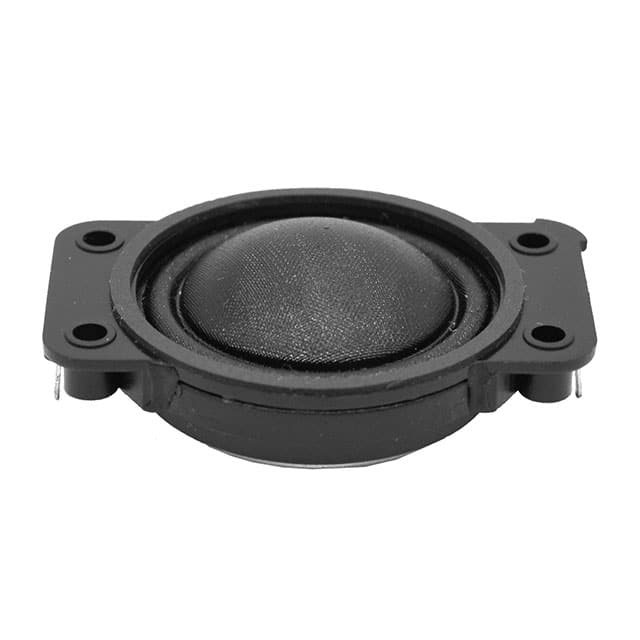

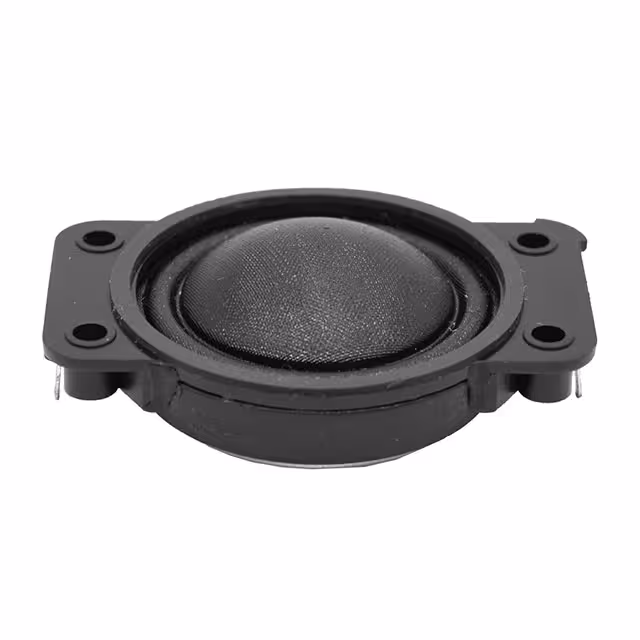

SPEAKER TWEETER FERROFLUID
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Power - Max | 90 W |
| Power - Rated | 30 W |
| AC and DC characteristics | |
| Frequency Range | 500 Hz ~ 20 kHz |
| Frequency - Self Resonant | 1.2kHz |
| Impedance | 4 Ohms |
| Environment and package | |
| Height - Seated (Max) | 0.661" (16.80mm) |
| Package | Box |
| Other | |
| Efficiency - dBA | 86.00 |
| Efficiency - Testing | 1W/1M |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Ingress Protection | - |
| Material - Cone | Cloth |
| Material - Magnet | Nd-Fe-B |
| Mfr | BDNC (HOLDING) LIMITED |
| Port Location | Top |
| Product Status | Obsolete |
| Series | - |
| Shape | Oval, Rectangular Frame |
| Technology | Magnetic |
| Termination | Solder Pads |
| Type | Tweeter |
