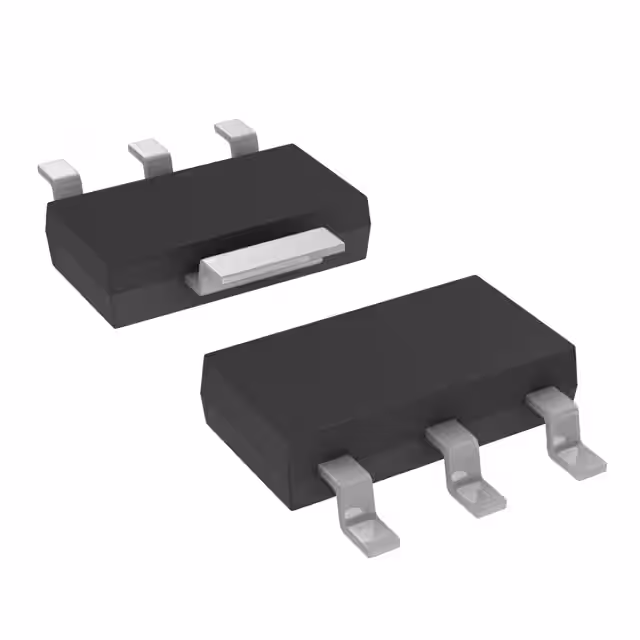

TRANS NPN 45V 1.5A SOT223-4
All alternatives
View full reportTechnical parameters
Key specs
TypeNPN
Collector-emitter voltage45 V
Collector current1.5 AMax
DC current gain40150mA
Power1.5 WMax
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| Current - Collector (Ic) (Max) | 1.5 A |
| Power - Max | 1.5 W |
| Voltage - Collector Emitter Breakdown (Max) | 45 V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 40 @ 150mA, 2V |
| Frequency - Transition | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~150°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | TO-261-4, TO-261AA |
| Supplier Device Package | SOT-223-4 |
| Other | |
| Base Product Number | BCP54 |
| Mfr | onsemi |
| Product Status | Active |
| Series | - |
| Transistor Type | NPN |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 50mA, 500mA |
