80 V, 1 A NPN medium power transistors
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| channel type (e) | NPN |
| Environment and package | |
| Automotive qualified | Yes |
| Halogen free | Yes |
| Package name | SC-73 |

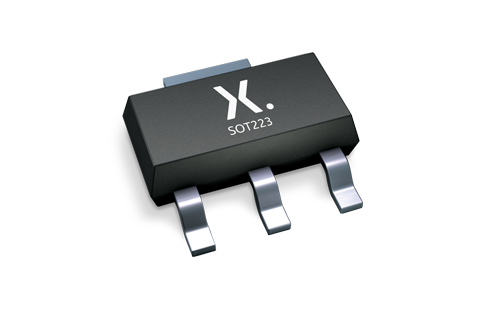

| Package version | SOT223 |
| RoHS | Compliant |
| Size | 6.5 x 3.5 x 1.65 |
| Other | |
| fT [min] | 100 |
| hFE [max] | 250 |
| hFE [min] | 63 |
| IC [max] | 1000 |
| Ptot | 725 |
| VCEO [max] | 80 |
