Nexperia USA Inc.Netherlands

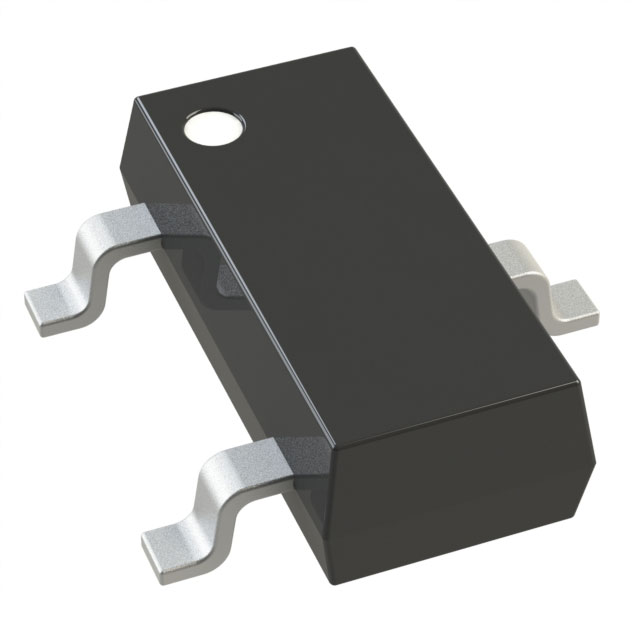

TRANS PNP DARL 30V 0.5A TO236AB
All alternatives
View full reportTechnical parameters
Key specs
TypePNP
Collector-emitter voltage30 V
Collector current500 mAMax
DC current gain20000100mA
Power250 mWMax
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| Current - Collector (Ic) (Max) | 500 mA |
| Power - Max | 250 mW |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 20000 @ 100mA, 5V |
| Frequency - Transition | 220MHz |
| Environment and package | |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C (TJ) |
| Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Qualification | AEC-Q101 |
| Supplier Device Package | TO-236AB |
| Other | |
| Base Product Number | BCV26 |
| Mfr | Nexperia USA Inc. |
| Product Status | Active |
| Series | - |
| Transistor Type | PNP - Darlington |
| Vce Saturation (Max) @ Ib, Ic | 1V @ 100µA, 100mA |
