Nexperia USA Inc.Netherlands

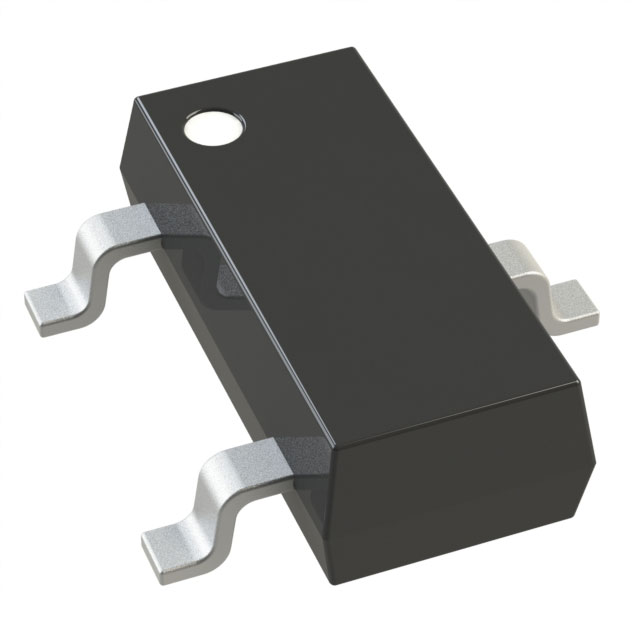

TRANS PNP 32V 0.1A TO236AB
All alternatives
View full reportTechnical parameters
Key specs
TypePNP
Collector-emitter voltage32 V
Collector current100 mAMax
DC current gain1202mA
Power250 mWMax
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| Current - Collector (Ic) (Max) | 100 mA |
| Power - Max | 250 mW |
| Voltage - Collector Emitter Breakdown (Max) | 32 V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 120 @ 2mA, 5V |
| Frequency - Transition | 100MHz |
| Environment and package | |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C (TJ) |
| Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Qualification | AEC-Q101 |
| Supplier Device Package | TO-236AB |
| Other | |
| Base Product Number | BCW29 |
| Mfr | Nexperia USA Inc. |
| Product Status | Active |
| Series | - |
| Transistor Type | PNP |
| Vce Saturation (Max) @ Ib, Ic | 150mV @ 2.5mA, 50mA |
