View full reportTechnical parameters
| Environment and package | |
|---|---|

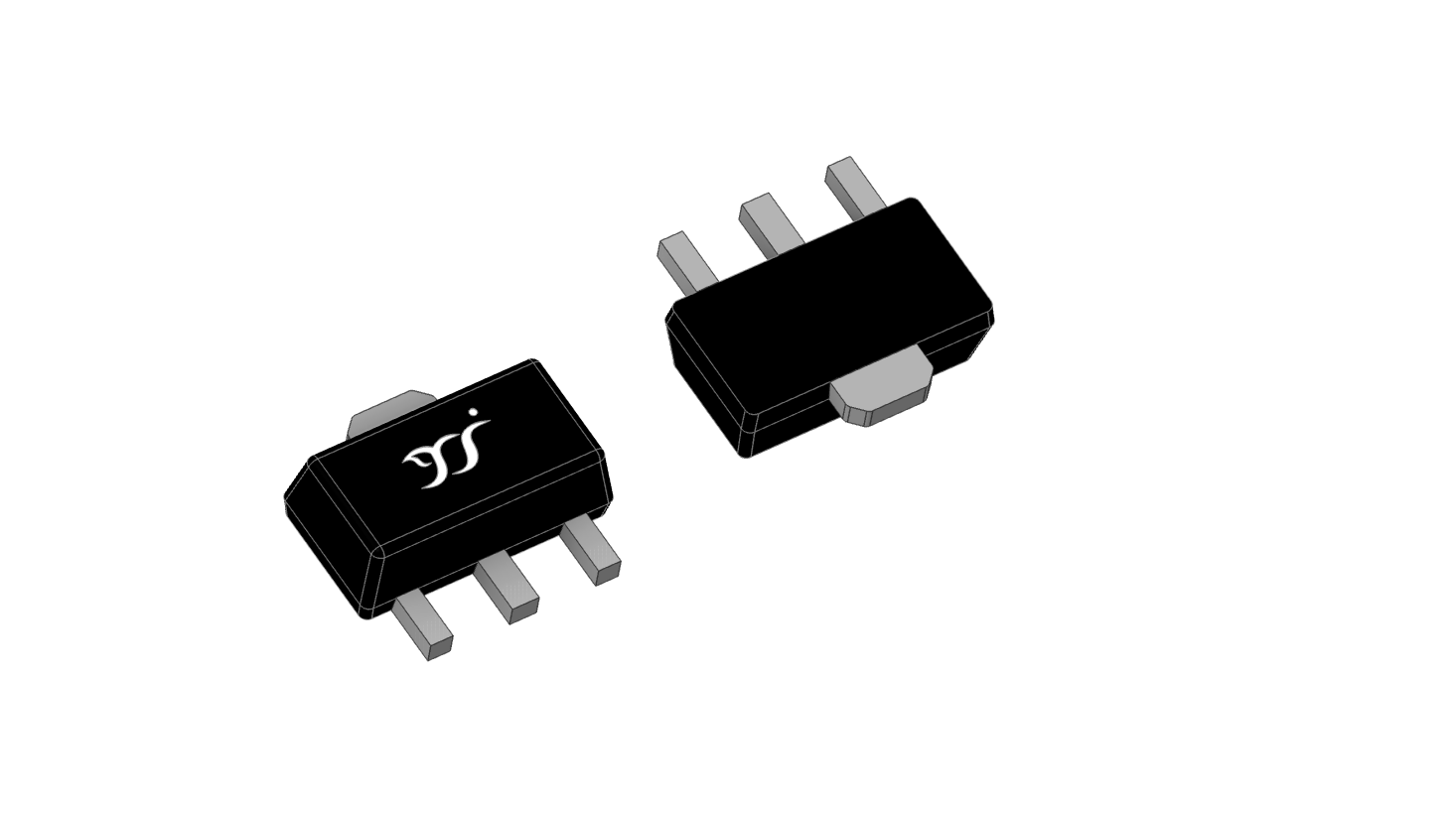

| Package | SOT-89 |
| Other | |
| BVCBO(V) | -45 |
| BVCEO(V) | -45 |
| BVEBO(V) | -5 |
| Ft(MHz) | / |
| HFE_Max | 250 |
| HFE_Min | 100 |
| @IB(mA) | -50 |
| IC(A) | -1 |
| @Ic(mA) | -150 |
| @IC(mA)_ | -500 |
| PCM(mW) | 500 |
| Status | Active |
| Type | PNP |
| VCE(sat)(V) | -0.5 |
| @Vce(V) | -2 |
Documents
DatasheetDatasheet · 374.0 KB · 2026-09-23EnvironmentalEnvironmental · 5.9 MB · 2026-09-23EnvironmentalEnvironmental · 5.8 MB · 2026-09-23EnvironmentalEnvironmental · 1.5 MB · 2026-09-23EnvironmentalEnvironmental · 1.4 MB · 2026-09-23Package DrawingPackage Drawing · 315.6 KB · 2026-09-23
Open document center
