Yangjie TechnologyChina
Transistors - Bipolar (BJT) - Si
All alternatives
View full reportTechnical parameters
Key specs
TypeNPN
Collector-emitter voltage45 V
Collector current1 AMax
DC current gain63150mA
Power500 mWMax
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| Current - Collector (Ic) (Max) | 1 A |
| Power - Max | 500 mW |
| Voltage - Collector Emitter Breakdown (Max) | 45 V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 63 @ 150mA, 2V |
| Frequency - Transition | 130MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~150°C(TJ) |
| Package | Tape & Reel (TR) |
| Package / Case | TO-243AA |

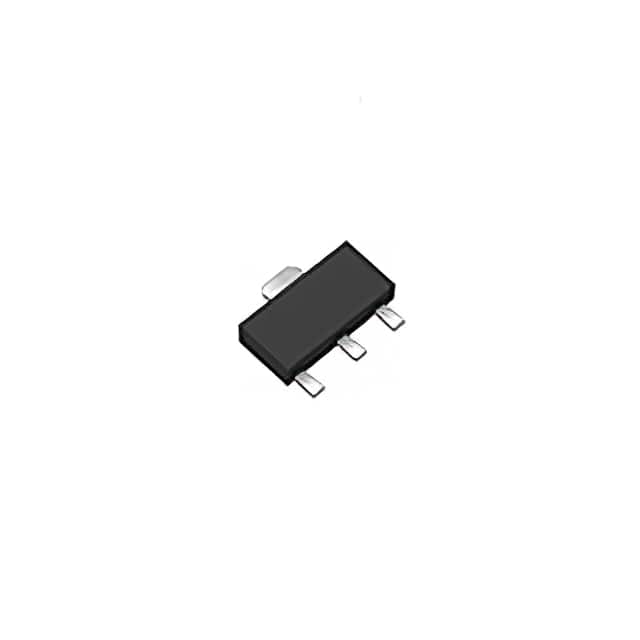

| Supplier Device Package | SOT-89 |
| Other | |
| Mfr | Yangjie Technology |
| Product Status | Active |
| Series | - |
| Transistor Type | NPN |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 50mA, 500mA |
Documents
DatasheetDatasheet · 480.6 KB · 2026-09-22EnvironmentalEnvironmental · 5.9 MB · 2026-09-22EnvironmentalEnvironmental · 5.8 MB · 2026-09-22EnvironmentalEnvironmental · 1.5 MB · 2026-09-22EnvironmentalEnvironmental · 1.4 MB · 2026-09-22Package DrawingPackage Drawing · 315.6 KB · 2026-09-22
Open document center
