Diodes IncorporatedUnited States

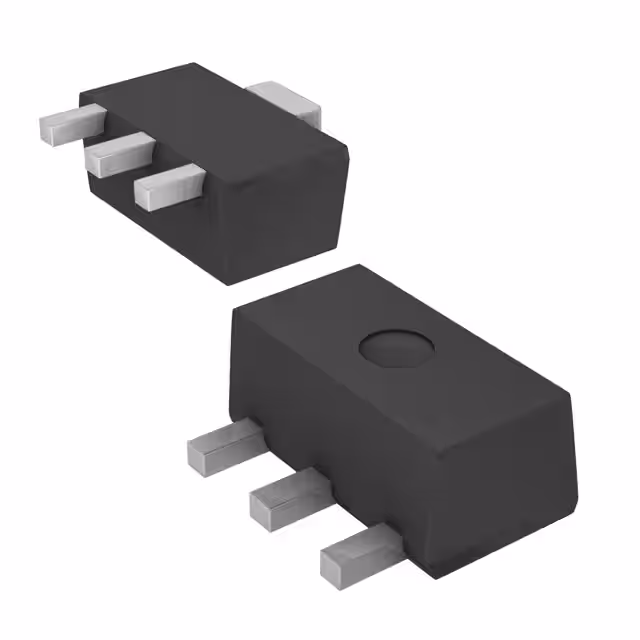

TRANS PNP 20V 1A SOT89-3
All alternatives
View full reportTechnical parameters
Key specs
TypePNP
Collector-emitter voltage20 V
Collector current1 AMax
DC current gain160500mA
Power1 WMax
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| Current - Collector (Ic) (Max) | 1 A |
| Power - Max | 1 W |
| Voltage - Collector Emitter Breakdown (Max) | 20 V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 160 @ 500mA, 1V |
| Frequency - Transition | 100MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C~150°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | TO-243AA |

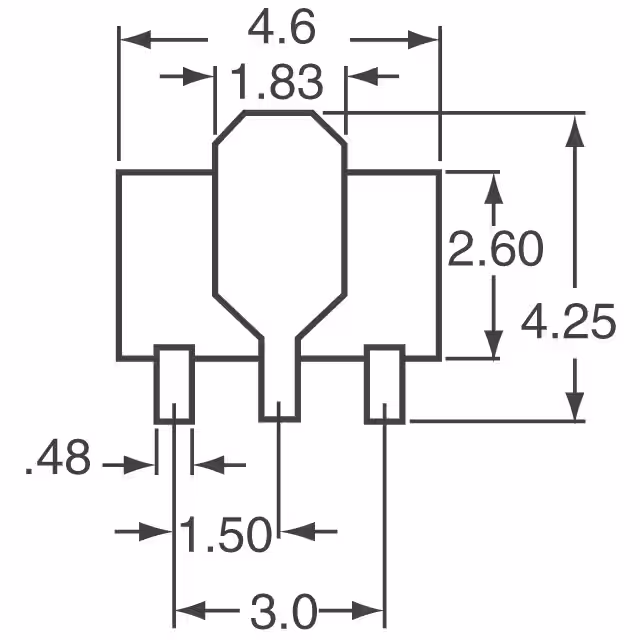

| Supplier Device Package | SOT-89-3 |
| Other | |
| Base Product Number | BCX6925 |
| Mfr | Diodes Incorporated |
| Product Status | Active |
| Series | - |
| Transistor Type | PNP |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 100mA, 1A |
