Bourns Inc.United States

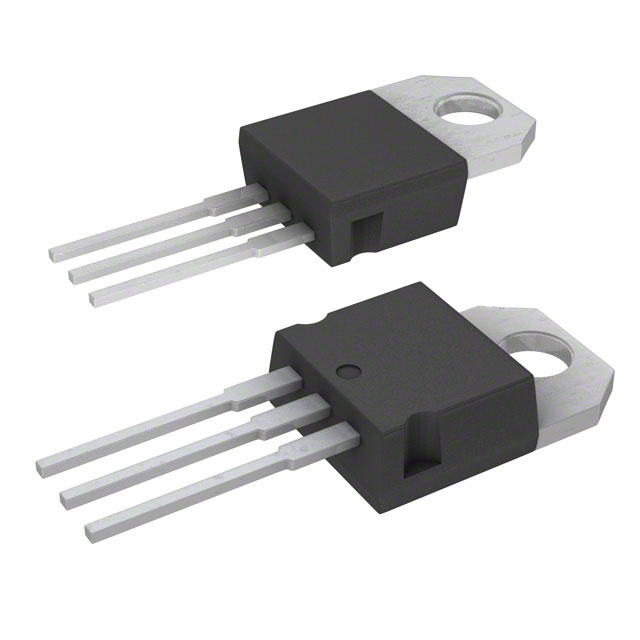

TRANS NPN DARL 100V 15A SOT93
All alternatives
View full reportTechnical parameters
Key specs
TypeNPN
Collector-emitter voltage100 V
Collector current15 AMax
DC current gain7506A
Power3.5 WMax
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 1mA |
| Current - Collector (Ic) (Max) | 15 A |
| Power - Max | 3.5 W |
| Voltage - Collector Emitter Breakdown (Max) | 100 V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 750 @ 6A, 3V |
| Frequency - Transition | - |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -65°C~150°C(TJ) |
| Package | Tube |
| Package / Case | TO-218-3 |
| Supplier Device Package | SOT-93 |
| Other | |
| Base Product Number | BDW83 |
| Mfr | Bourns Inc. |
| Product Status | Obsolete |
| Series | - |
| Transistor Type | NPN - Darlington |
| Vce Saturation (Max) @ Ib, Ic | 4V @ 150mA, 15A |
