STMicroelectronicsSwitzerland

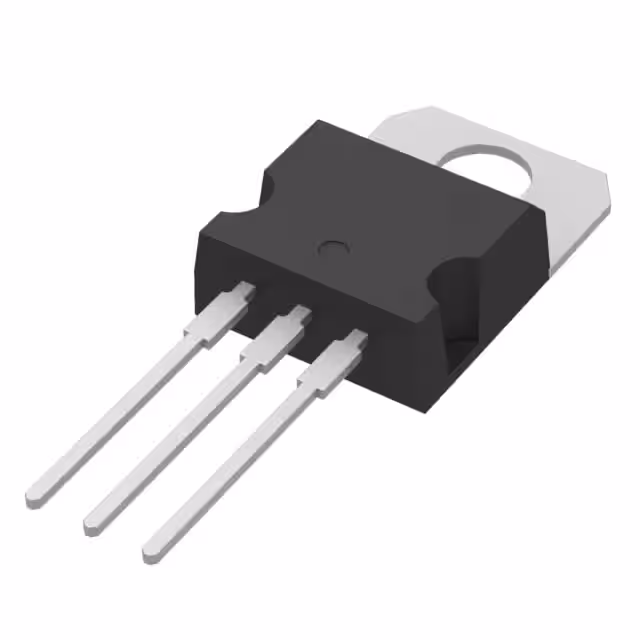

TRANS PNP DARL 100V 10A TO220
All alternatives
View full reportTechnical parameters
Key specs
TypePNP
Collector-emitter voltage100 V
Collector current10 AMax
DC current gain7503A
Power70 WMax
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 500µA |
| Current - Collector (Ic) (Max) | 10 A |
| Power - Max | 70 W |
| Voltage - Collector Emitter Breakdown (Max) | 100 V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 750 @ 3A, 3V |
| Frequency - Transition | - |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | 150°C(TJ) |
| Package | Tube |
| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220 |
| Other | |
| Base Product Number | BDX34 |
| Mfr | STMicroelectronics |
| Product Status | Active |
| Series | - |
| Transistor Type | PNP - Darlington |
| Vce Saturation (Max) @ Ib, Ic | 2.5V @ 6mA, 3A |
