Infineon TechnologiesGermany

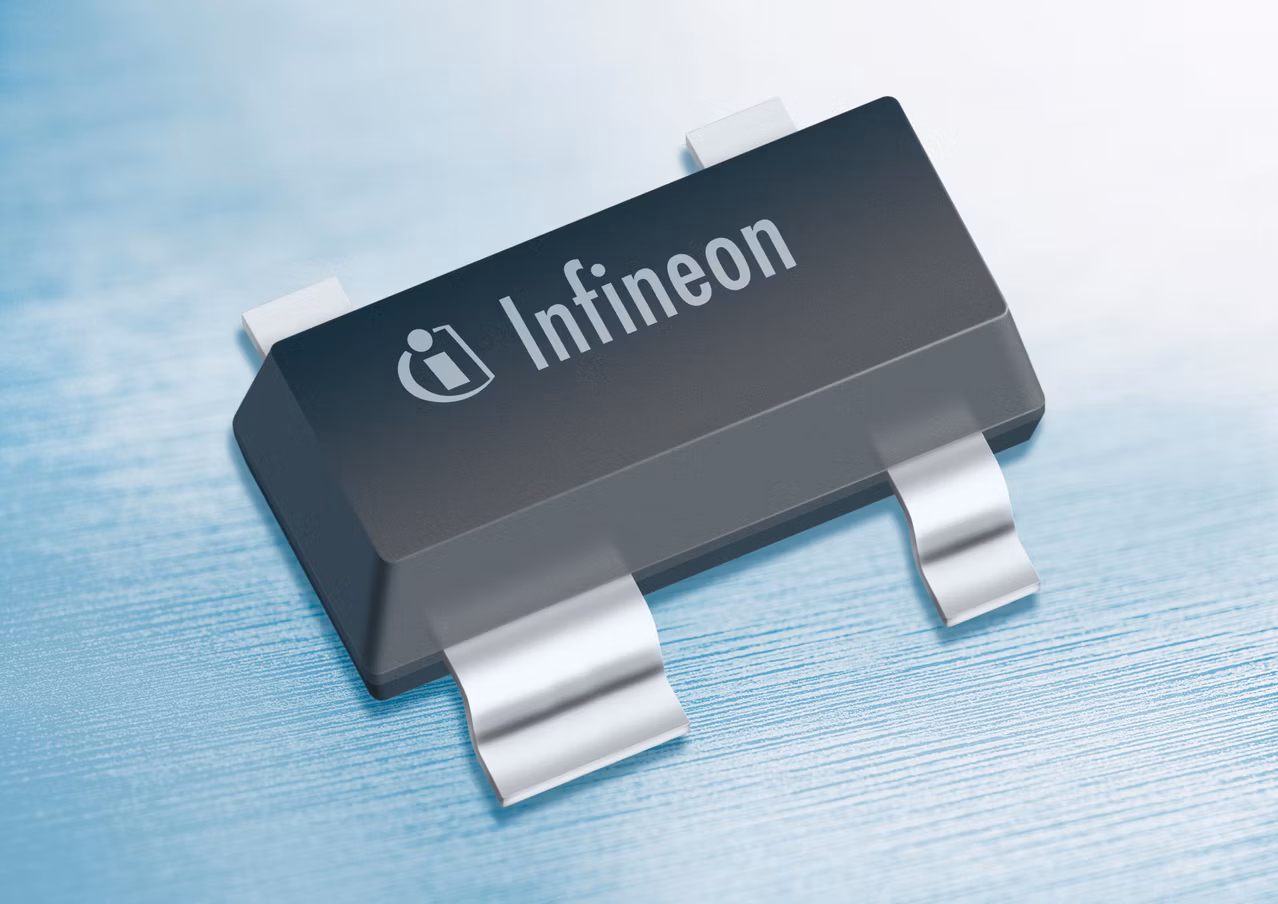

BF998 is an N-Channel MOSFET with low-noise input stage up to 1 GHz, Pb-free, ideal for TV/car radio. Find data sheet, parameters and ordering info.
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Maximum Continuous Drain current ID | 30 mA |
| Maximum Drain-source voltage Vds | 12 V |
| AC and DC characteristics | |
| Noise figure F | 1.80 dB @800 MHz |
| Power gain Gp | 20 dB @800 MHz |
| Environment and package | |
| Package | SOT143 |
| Other | |
| Cdss | 1.1 pF |
| Cg1ss | 2.1 pF |
| F | 1.8 dB |
| Forward transconductance gfs | 24 mS |
| Gate input capacitance Cg1ss | 2.1 pF |
| gfs | 24 mS |
| Gp | 20 dB |
| ID max | 30 mA |
| Output capacitance Cdss | 1.1 pF |
| Ptot max | 200 mW |
