BDNC (HOLDING) LIMITEDUnited Kingdom

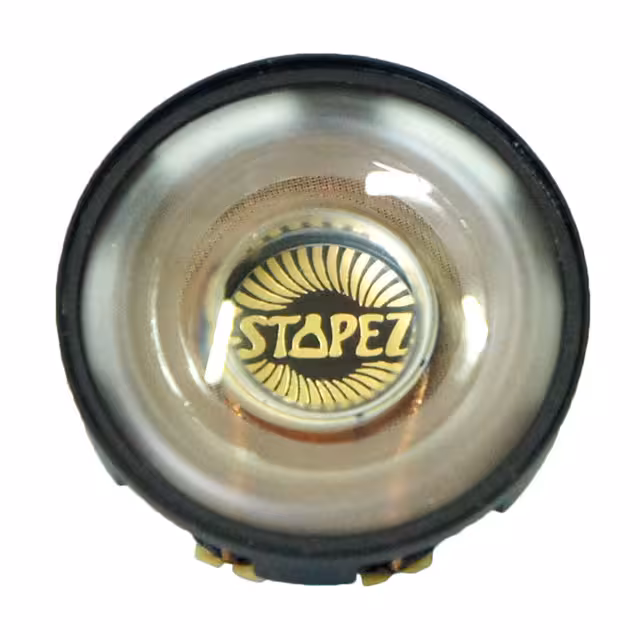

SPEAKER CONE GLASS 40MM
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Power - Max | 15 W |
| Power - Rated | 5 W |
| AC and DC characteristics | |
| Frequency Range | 10 Hz ~ 20 kHz |
| Impedance | 4 Ohms |
| Environment and package | |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Package | Box |
| Size / Dimension | 1.567" Dia (39.80mm) |
| Other | |
| Efficiency - dBA | 83.00 |
| Efficiency - Testing | 500mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Ingress Protection | - |
| Material - Cone | Glass Composite |
| Material - Magnet | Nd-Fe-B |
| Mfr | BDNC (HOLDING) LIMITED |
| Port Location | Top |
| Product Status | Active |
| Series | - |
| Shape | Round |
| Technology | Magnetic |
| Termination | Solder Eyelet |
| Type | General Purpose |
Documents
No documents are linked to this part yet.
