XTALTQUnited States
FeaturesUltra stabilityWide operating Temp.DIP 20.2x20.2mm

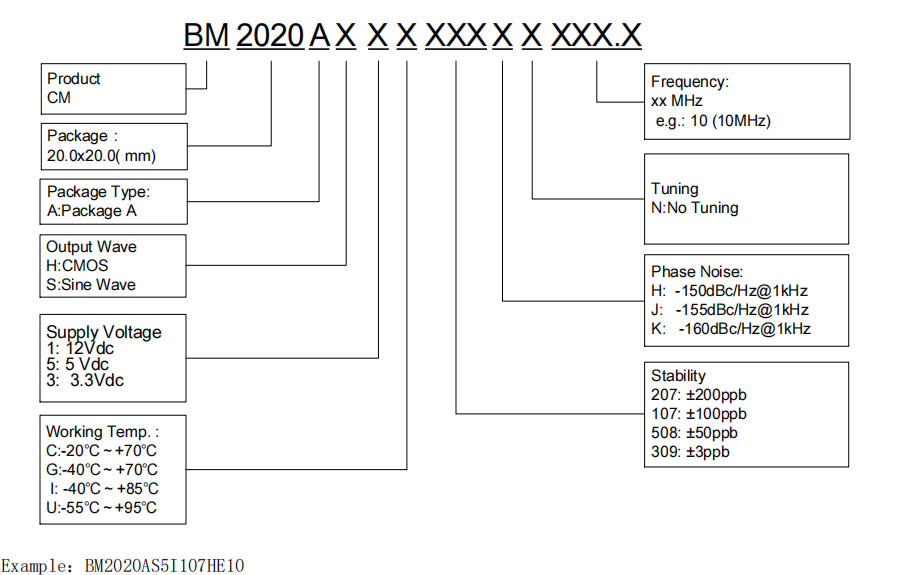

All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Control Voltage Range | 0 | 1.65 | 3.3 | V | VCC=5.0Vdc |
| Start-up Current | - | - | 650 | mA |
| Steady Current | - | - | 300 | mA |
| Supply Sensitivity | - | - | ±20 | ppb | Vcc+5% |
| Supply Voltage | - | 5.0 | - | V | Vcc±5% |
| AC and DC characteristics | |
| Accuracy | -30 | - | 30 | ns | 10Min after locked to 1pps. |
| Disciplined Frequency Tolerance | -0.01 | - | 0.01 | ppb | Average after GPS lock for 120 minutes |
| Frequency Range | 10~122.88 | MHz |
| Frequency Tuning Range | ±0.5 | - | ±2.0 | ppm |
| Holdover Accuracy | -10 | - | 10 | us | δT=±5*C, after GPS lock for 120minutes, continuous testing for 24 hours |
| Initial Frequency Tolerance | -100 | - | 100 | PPb | No PPS input,power on 3min |
| Nominal Frequency | 10,40,100 | MHz |
| Rise/Fal Edge | - | - | 6 | ns |
| SSB Phase Noise@10MHz | - | - | -100 | dBc/Hz | Offset 10Hz | At+25℃ |
| Environment and package | |
| Freq.Stability Vs. Temp. | ±1 | - | ±5 | ppb | -40℃~+85℃ |
| Moisture Sensitivity Level | NA |
| Operating Temperature Range | -40℃~+85℃ |
| RoHS | RoHS Directive 2011/65/EU Annex IlRecasting 2002/95/EC |
| Storage Temperature Range | -55℃~+125℃ |
| Temperature Stress Test | IEC60068,GJB360B |
| Other | |
| - | - | -130 | Offset 100Hz |
| >100MHz | O | O | O | X |
| 10~12.8MHz | O | O | O | O | O=AvailableX= Not Available |
| 1PPS Input | Waveform | HCMOS | 500Ω |
| 1PPS Output | Waveform | HCMOS | 500Ω |
| 20~40MHz | O | O | O | O |
| 50~100MHz | O | O | O | X |
| Aging/ Day | - | - | ±1 | Na PPS input, power on 30 daya@10MHz |
| Aging/ First Year | - | - | ±100 | No PPS input, power on 30 days@10MHz |
| CMOS@10MHz | VOH | 2.4 | - | - | V | HCMOS Output, Load=15pf |
| Contact Pads | Gold over Nickel |
| Duty Cycle | 45 | 一 | 55 | % | (VOH-VOL)/2 |
| EMC Test (ESD) | IEC61000,JESD22 |
| ESD，HBM/CDM/MM | 4KV/2KV/200V |
| Harmonics | - | - | -30 | dBc |
| Hold | - | - | 0.4 | V | Load≤5mA |
| Load | - | 50 | - | Ω |
| Load Sensitivity | - | - | +20 | Load+5% |
| Mechanical Stress Test | IEC60068,GJB360B |
| Min. | Typ. | Max. |
| Output with LockStatus | Lock | 2.7 | V | Load≤5mA |
| Parameter | Value | Unit | Conditions |
| Pulse width | 500 | - | - | ns |
| Short-term Stability@10MHz@1S | - | - | 1.00E-11 | - | Power on 15min |
| Sine wave@10MHz | Output Level | 7 | - | - | dBm |
| Solderability | EIA/JESD22-B102-C |
| Spurious | - | - | -70 | dBc |
| Tuning Slope | Positive |
| VOH | 2.7 | 3.3 | 5 | V |
| VOL | - | - | 0.4 | V |
| Warm up time | - | - | 3 | Min | Ambient, 5 min relative 1h, acourancy ±100ppb |
