CONN HEADER SMD 20POS 1MM
All alternatives
View full reportTechnical parameters
Key specs
Positions20
Rows2
Pitch1 mm
GenderMale
Current rating1 AMax
| Power | |
|---|---|
| Current Rating (Amps) | 1A |
| Voltage Rating | 50V |
| Environment and package | |

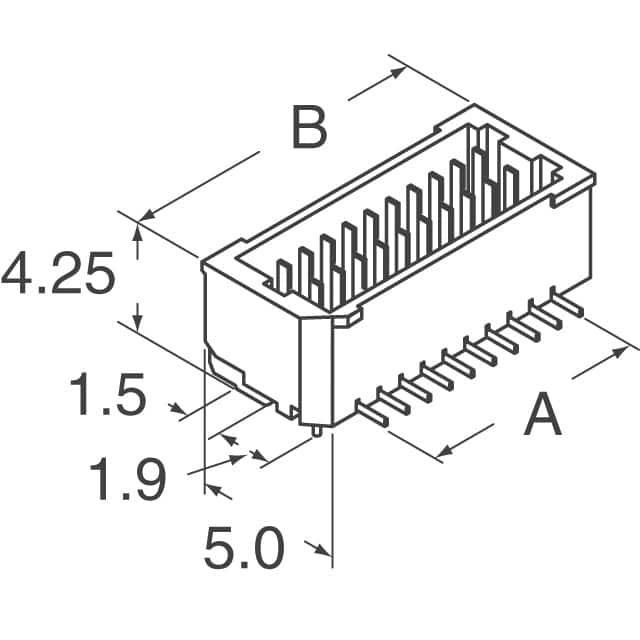

| Insulation Height | 0.167" (4.25mm) |
| Mated Stacking Heights | 6.3mm |
| Mounting Type | Surface Mount |
| Operating Temperature | -25°C~85°C |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Other | |
| Applications | - |
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | - |
| Contact Finish Thickness - Mating | - |
| Contact Finish Thickness - Post | - |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Features | Board Guide, Pick and Place, Solder Retention |
| Ingress Protection | - |
| Insulation Color | Natural |
| Insulation Material | Polyamide (PA), Nylon, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mfr | JST Sales America Inc. |
| Number of Positions | 20 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Overall Contact Length | - |
| Pitch - Mating | 0.039" (1.00mm) |
| Product Status | Obsolete |
| Row Spacing - Mating | - |
| Series | SHD |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
