WIZnetSouth Korea

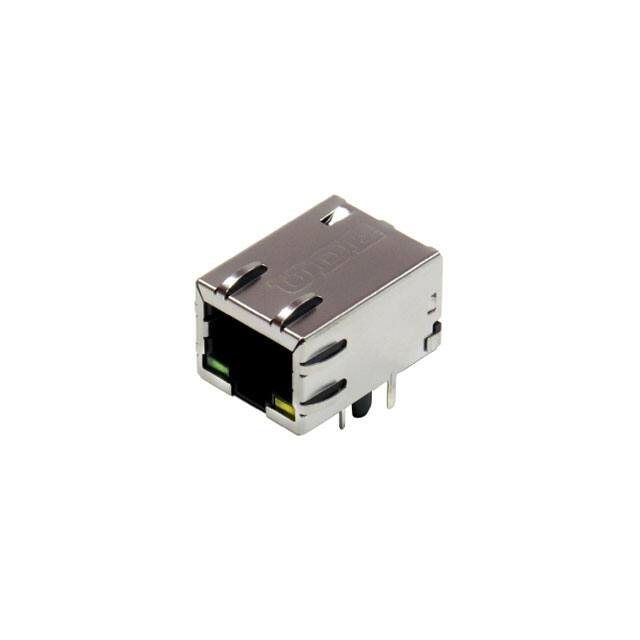

CONN JACK 1PORT 100 BASE-T SMD
All alternatives
View full reportTechnical parameters
Key specs
Rows1
| Environment and package | |
|---|---|
| Height Above Board | 0.536" (13.61mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C |
| Package | Strip |
| Other | |
| Applications | 10/100 Base-T |
| Connector Type | RJ45 |
| Contact Finish | Gold |
| Contact Finish Thickness | 50.0µin (1.27µm) |
| Contact Material | Phosphor Bronze |
| Features | Board Guide |
| Housing Material | Thermoplastic |
| LED Color | Green - Yellow |
| Mfr | WIZnet |
| Number of Cores per Jack | 4 |
| Number of Ports | 1 |
| Number of Rows | 1 |
| Orientation | 90° Angle (Right) |
| Product Status | Active |
| Series | - |
| Shielding | Shielded, EMI Finger |
| Shield Material | Stainless Steel |
| Tab Direction | Up |
| Termination | Solder |
