Infineon TechnologiesGermany
MOSFET N-CH 100V 1.7A SOT223-4
All alternatives
View full reportTechnical parameters
Key specs
ChannelN-channel
Drain-source voltage100 V
Continuous drain current1.7 A
On-resistance300 mΩMax · 1.7A
Gate threshold voltage4 VMax · 1mA
| Power | |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 1.7A (Ta) |
| Drain to Source Voltage (Vdss) | 100 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Power Dissipation (Max) | 1.8W (Ta) |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~150°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |

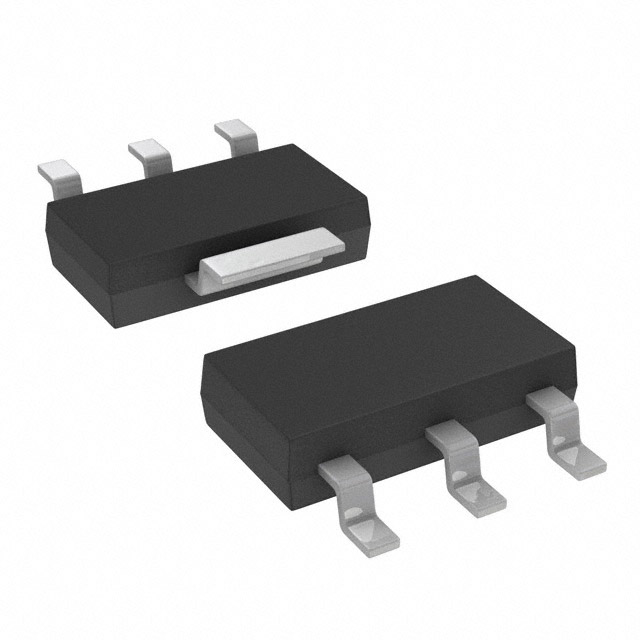

| Package / Case | TO-261-4, TO-261AA |
| Supplier Device Package | PG-SOT223-4 |
| Other | |
| FET Feature | - |
| FET Type | N-Channel |
| Input Capacitance (Ciss) (Max) @ Vds | 550 pF @ 25 V |
| Mfr | Infineon Technologies |
| Product Status | Obsolete |
| Rds On (Max) @ Id, Vgs | 300mOhm @ 1.7A, 10V |
| Series | SIPMOS® |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | ±20V |
| Vgs(th) (Max) @ Id | 4V @ 1mA |
