Infineon TechnologiesGermany

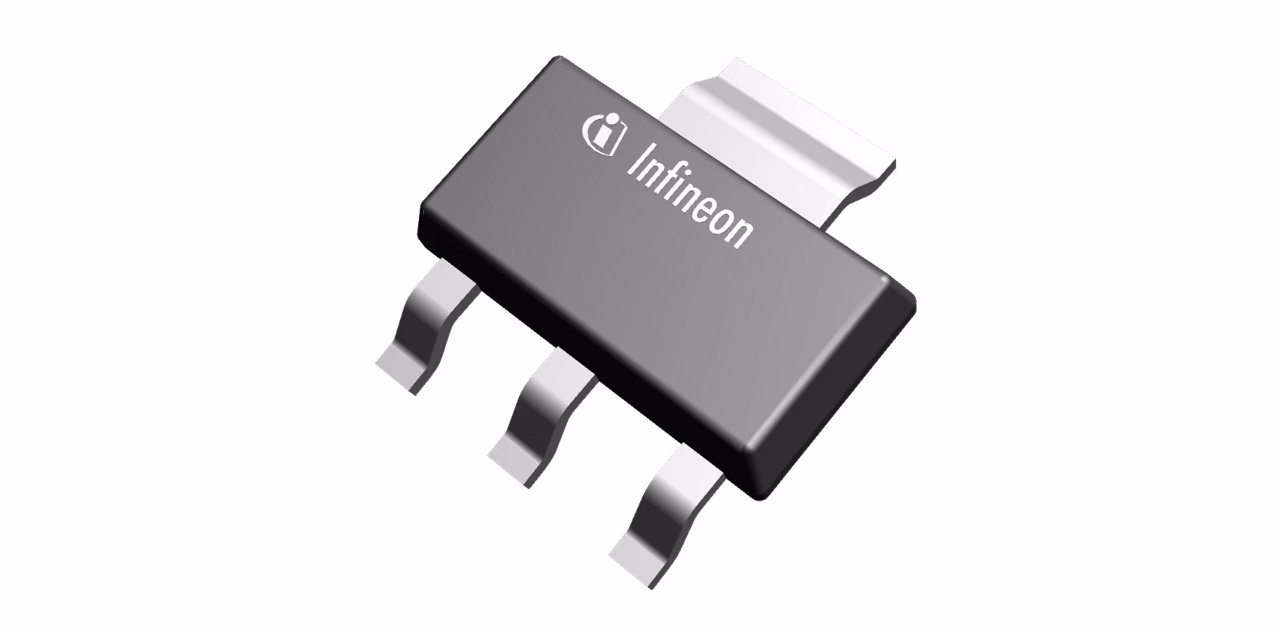

BSP373N is a Small signal/small power MOSFET with VDS max: 100 V, RDS (on) max: 240 mOhm, Package: SOT-223, ID max: 1.8 A, Qualification: Automotive
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Mounting | SMD |
| Operating Temperature max | 150 °C |
| Package | SOT-223 |
| Other | |
| Ciss | 199 pF |
| Coss | 36 pF |
| ID (@25°C) max | 1.8 A |
| IDpuls max | 7.3 A |
| Mode | Enhancement |
| Pin Count | 4 Pins |
| Polarity | N |
| Ptot max | 1.8 W |
| QG (typ @10V) | 6.2 nC |
| RDS (on) (@10V) max | 240 mΩ |
| Rth | 25 K/W |
| RthJA max | 110 K/W |
| Special Features | Small Power |
| VDS max | 100 V |
| VGS(th) range | 2.1 V to 4 V |
