onsemiUnited States

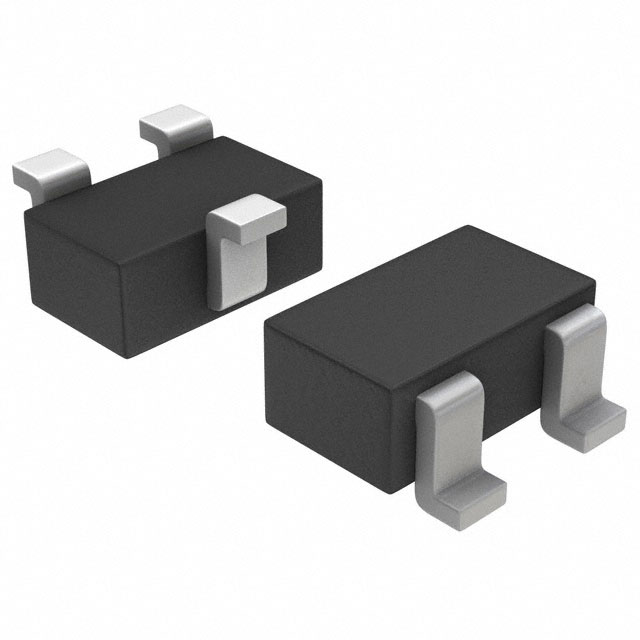

MOSFET N-CH 50V 210MA SC70
All alternatives
View full reportTechnical parameters
Key specs
ChannelN-channel
Drain-source voltage50 V
Continuous drain current210 mA
On-resistance3.5 ΩMax · 220mA
Gate threshold voltage1.5 VMax · 1mA
| Power | |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 210mA (Ta) |
| Drain to Source Voltage (Vdss) | 50 V |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Power Dissipation (Max) | 340mW (Ta) |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Package / Case | SC-70, SOT-323 |
| Supplier Device Package | SOT-323 |
| Other | |
| Base Product Number | BSS138 |
| FET Feature | - |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 1.1 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 38 pF @ 25 V |
| Mfr | onsemi |
| Product Status | Active |
| Rds On (Max) @ Id, Vgs | 3.5Ohm @ 220mA, 10V |
| Series | - |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | ±20V |
| Vgs(th) (Max) @ Id | 1.5V @ 1mA |
