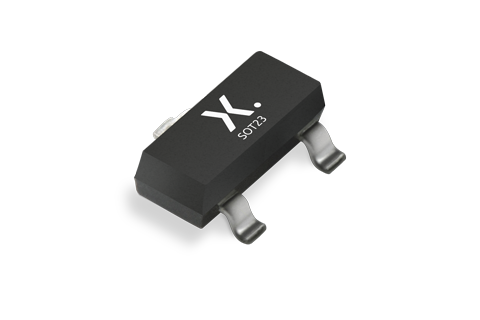

P-channel enhancement mode vertical DMOS transistor
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Channel type | P |
| Environment and package | |
| Automotive qualified | N |
| Halogen free | Yes |
| Package name | SOT23 |
| Package version | SOT23 |
| RoHS | Compliant |
| Other | |
| Ciss [typ] | 25 |
| Coss [typ] | 15 |
| ID [max] | -0.13 |
| Nr of transistors | 1 |
| Product status | Not for design in |
| Ptot [max] | 0.25 |
| RDSon [max] @ VGS = 10 V | 10000 |
| Release date | 2011-01-24 |
| Tj [max] | 150 |
| VDS [max] | -50 |
| VGS [max] | 20 |
| VGSth @25 C [min] | -0.8 |
| VGSth [max] @25 C | -2 |
