Infineon TechnologiesGermany

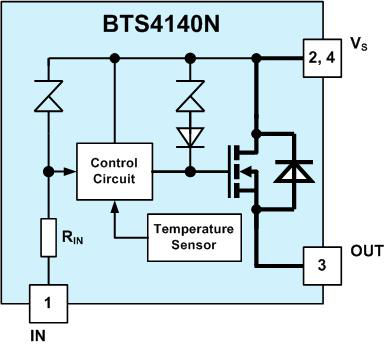

BTS4140N is a 24 V automotive high-side switch with current limitation, overvoltage protection, and thermal shutdown for vehicles. Find data sheet and info.
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Channels | 1 |
| Current Limit min | 0.2 A |
| IL (Short Circuit Current) | 0.9 A |
| Load Current | 0.2 A |
| Nominal Load Current per channel (All channels active) | 0.2 A |
| Recommended Operating Voltage range | 4.9 V to 60 V |
| Environment and package | |
| Mounting | SMT |
| Operating Temperature range | -40 °C to 150 °C |
| Qualification | Automotive |
| Other | |
| Diagnostics | n.a. |
| Family | Classic PROFET™ 24V |
| Planned to be available until at least | 2039 |
| Ptot max | 1.7 W |
| toff (Turn OFF time) max | 140 µs |
| ton (Turn ON time) max | 100 µs |
