BXRC-27H2000-C-03
BridgeluxUnited States

BXRC-27H2000-C-03

ObsoleteLED Lighting - COBs, Engines, Modules, Strips

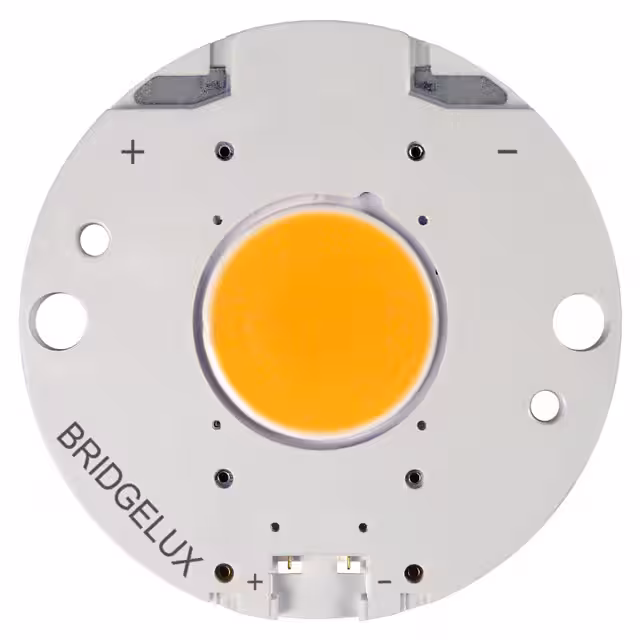

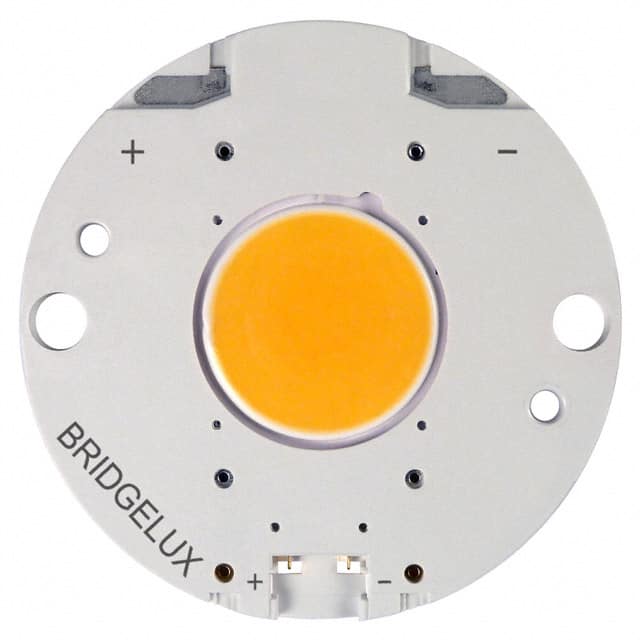

LED COB ULTRAVERO13 WARM WHT RND

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Current - Max1.05A
Current - Test500mA
Lumens/Watt @ Current - Test74 lm/W
Voltage - Forward (Vf) (Typ)32.5V
Environment and package
Height1.90mm
Luminous Flux @ Current/Temperature1210lm(Typ)
PackageTray
Size / Dimension36.20mm Dia
Temperature - Test25°C
Other
Base Product NumberBXRC-27
CCT (K)2700K 3-Step MacAdam Ellipse
ColorWhite, Warm
ConfigurationRound
CRI (Color Rendering Index)97
Features-
Lens TypeFlat
Light Emitting Surface (LES)13.20mm Dia
MfrBridgelux
Product StatusObsolete
SeriesDécor Series™ Ultra Vero® 13
TypeChip On Board (COB)
Viewing Angle120°
Wavelength-

Documents

No documents are linked to this part yet.
