Vishay General Semiconductor - Diodes DivisionUnited States

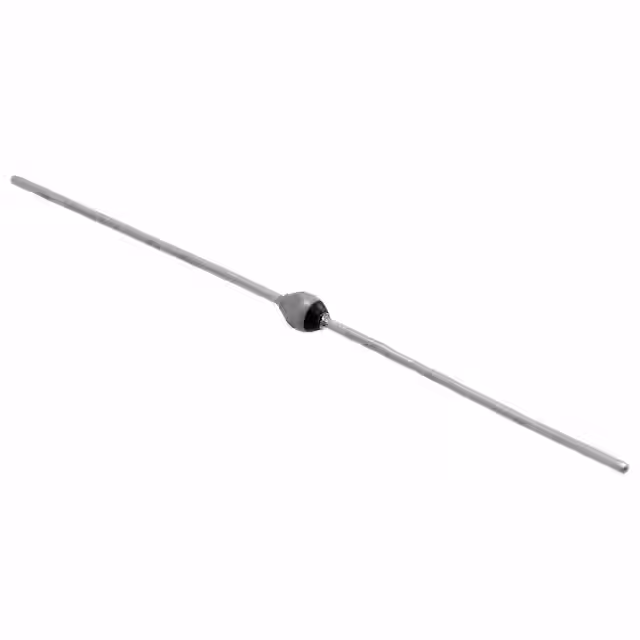

DIODE AVAL 1.6KV 250MA SOD57
All alternatives
View full reportTechnical parameters
Key specs
Reverse voltage1.6 kV
Average rectified current250 mA
Forward voltage2.4 VMax · 200 mA
TypeFast recoveryFast Recovery =< 500ns，> 200mA (Io)
| Power | |
|---|---|
| Current - Average Rectified (Io) | 250mA |
| Current - Reverse Leakage @ Vr | 2 µA @ 1000 V |
| Voltage - DC Reverse (Vr) (Max) | 1600 V |
| Voltage - Forward (Vf) (Max) @ If | 2.4 V @ 200 mA |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature - Junction | -55°C~150°C |
| Package | Tape & Box (TB) |
| Package / Case | SOD-57, Axial |
| Supplier Device Package | SOD-57 |
| Other | |
| Base Product Number | BY203 |
| Capacitance @ Vr, F | - |
| Diode Type | Avalanche |
| Mfr | Vishay General Semiconductor - Diodes Division |
| Product Status | Active |
| Reverse Recovery Time (trr) | 300 ns |
| Series | - |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
