Yangjie TechnologyChina

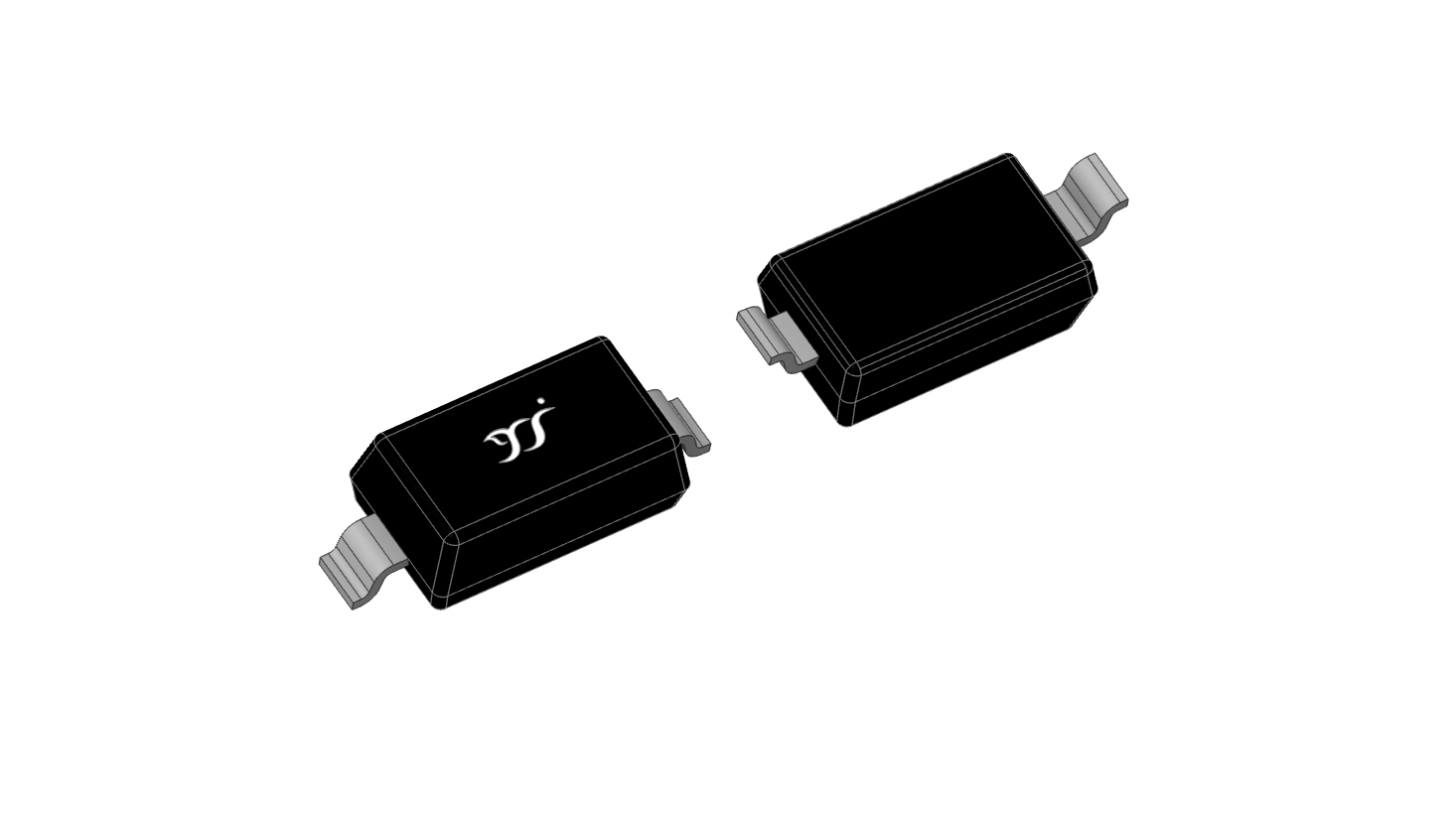

SOD-123 36V 0.5W Diodes Zener
All alternatives
View full reportTechnical parameters
Key specs
Zener voltage36 V
Tolerance2 %
Power410 mWMax
Zener impedance90 ΩMax
| Power | |
|---|---|
| Current - Reverse Leakage @ Vr | 100 nA @ 27 V |
| Power - Max | 410 mW |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA |
| Voltage - Zener (Nom) (Vz) | 36 V |
| AC and DC characteristics | |
| Impedance (Max) (Zzt) | 90 Ohms |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~175°C(TJ) |
| Package | Tape & Reel (TR) |
| Package / Case | SOD-123 |
| Supplier Device Package | SOD-123 |
| Other | |
| Mfr | Yangjie Technology |
| Product Status | Active |
| Series | - |
| Tolerance | ±2% |
