Yangjie TechnologyChina

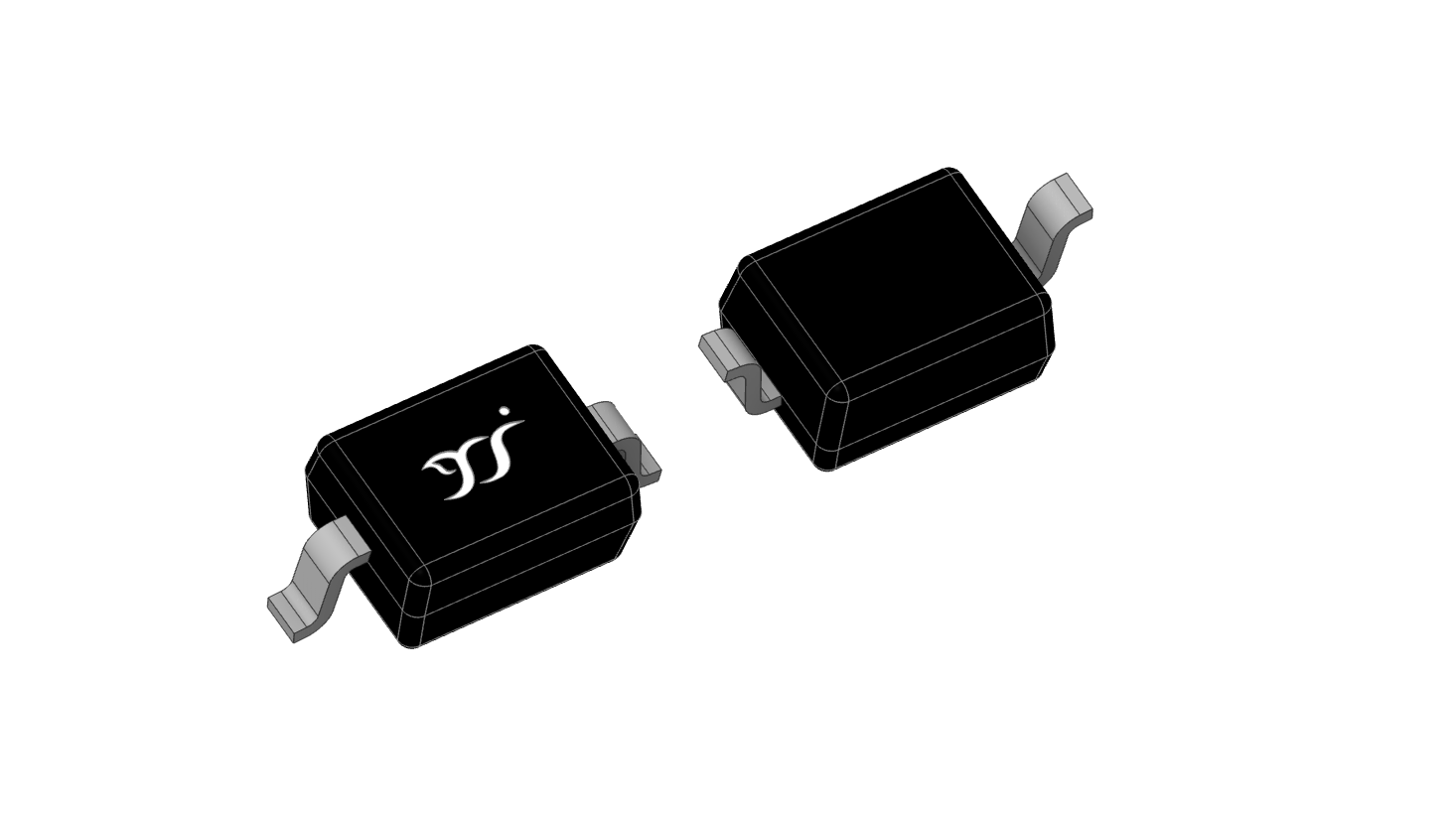

SOD-323 12V 0.3W Diodes Zener
All alternatives
View full reportTechnical parameters
Key specs
Zener voltage12 V
Tolerance5 %
Power200 mWMax
Zener impedance25 ΩMax
| Power | |
|---|---|
| Current - Reverse Leakage @ Vr | 100 nA @ 8 V |
| Power - Max | 200 mW |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA |
| Voltage - Zener (Nom) (Vz) | 12 V |
| AC and DC characteristics | |
| Impedance (Max) (Zzt) | 25 Ohms |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C~150°C(TJ) |
| Package | Tape & Reel (TR) |
| Package / Case | SC-76, SOD-323 |
| Supplier Device Package | SOD-323 |
| Other | |
| Mfr | Yangjie Technology |
| Product Status | Active |
| Series | - |
| Tolerance | ±5% |
Documents
DatasheetDatasheet · 1011.7 KB · 2026-09-22EnvironmentalEnvironmental · 5.9 MB · 2026-09-22EnvironmentalEnvironmental · 5.8 MB · 2026-09-22EnvironmentalEnvironmental · 1.5 MB · 2026-09-22EnvironmentalEnvironmental · 1.4 MB · 2026-09-22Package DrawingPackage Drawing · 256.8 KB · 2026-09-22
