STMicroelectronicsSwitzerland

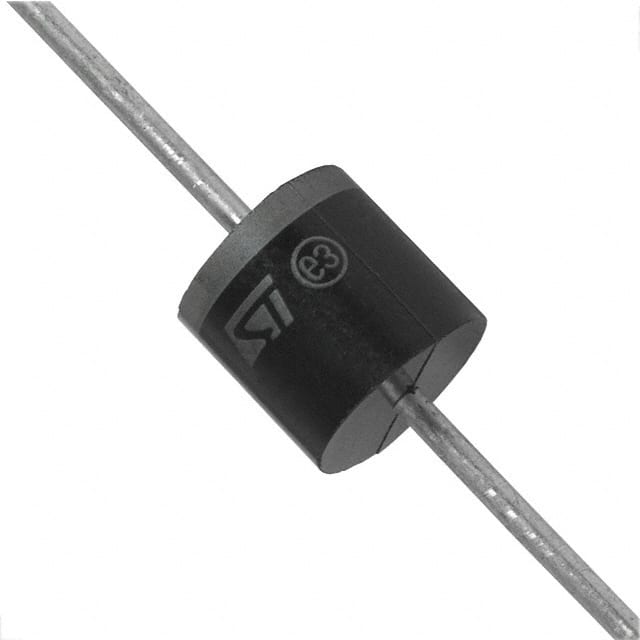

TVS DIODE 39VWM 90VC R6
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage39 V
Breakdown voltage43.3 V
Clamping voltage90 VMax
Peak pulse power5 kW
PolarityBidirectional
| Power | |
|---|---|
| Bidirectional Channels | 1 |
| Current - Peak Pulse (10/1000µs) | 667A (8/20µs) |
| Power Line Protection | No |
| Power - Peak Pulse | 5000W (5kW) |
| Voltage - Breakdown (Min) | 43.3V |
| Voltage - Clamping (Max) @ Ipp | 90V |
| Voltage - Reverse Standoff (Typ) | 39V |
| AC and DC characteristics | |
| Capacitance @ Frequency | 2400pF @ 1MHz |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | - |
| Package | Tape & Reel (TR) |
| Package / Case | R-6, Axial |
| Supplier Device Package | R-6 |
| Other | |
| Applications | General Purpose |
| Base Product Number | BZW50 |
| Mfr | STMicroelectronics |
| Product Status | Not For New Designs |
| Series | BZW50, TRANSIL™ |
| Type | Zener |
Documents
No documents are linked to this part yet.
