Taiwan Semiconductor CorporationTaiwan, China

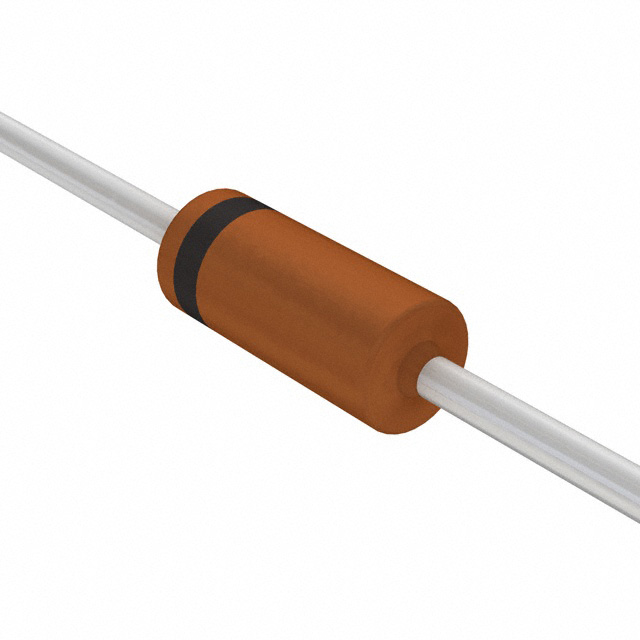

DIODE ZENER 13V 500MW DO35
All alternatives
View full reportTechnical parameters
Key specs
Zener voltage13 V
Tolerance2 %
Power500 mWMax
Zener impedance26 ΩMax
| Power | |
|---|---|
| Current - Reverse Leakage @ Vr | 100 nA @ 10 V |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 100 mA |
| Voltage - Zener (Nom) (Vz) | 13 V |
| AC and DC characteristics | |
| Impedance (Max) (Zzt) | 26 Ohms |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Package | Tape & Box (TB) |
| Package / Case | DO-204AH, DO-35, Axial |
| Supplier Device Package | DO-35 |
| Other | |
| Base Product Number | BZX55 |
| Mfr | Taiwan Semiconductor Corporation |
| Product Status | Active |
| Series | - |
| Tolerance | ±2% |
