Vishay General Semiconductor - Diodes DivisionUnited States

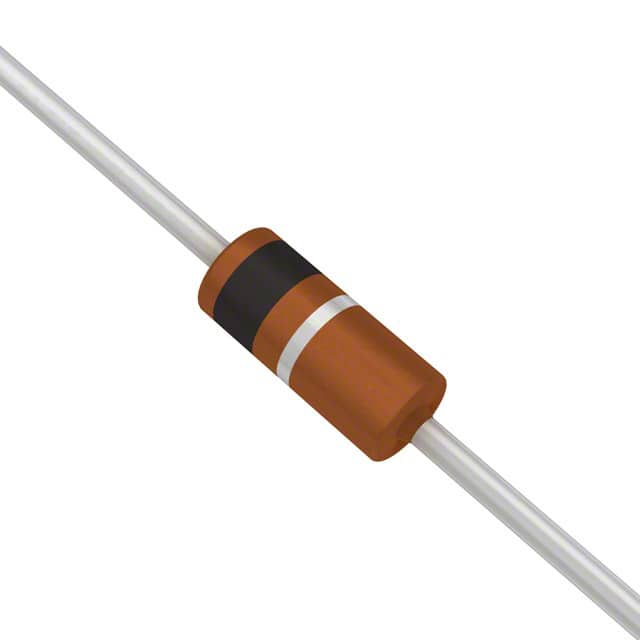

DIODE ZENER 13V 500MW DO35
All alternatives
View full reportTechnical parameters
Key specs
Zener voltage13 V
Tolerance2 %
Power500 mWMax
Zener impedance26 ΩMax
| Power | |
|---|---|
| Current - Reverse Leakage @ Vr | 100 nA @ 10 V |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 200 mA |
| Voltage - Zener (Nom) (Vz) | 13 V |
| AC and DC characteristics | |
| Impedance (Max) (Zzt) | 26 Ohms |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -65°C~175°C |
| Package | Cut Tape (CT); Tape & Box (TB) |
| Package / Case | DO-204AH, DO-35, Axial |
| Supplier Device Package | DO-35 (DO-204AH) |
| Other | |
| Base Product Number | BZX55B13 |
| Mfr | Vishay General Semiconductor - Diodes Division |
| Product Status | Active |
| Series | Automotive, AEC-Q101, BZX55 |
| Tolerance | ±2% |
