Wolfspeed, Inc.United States

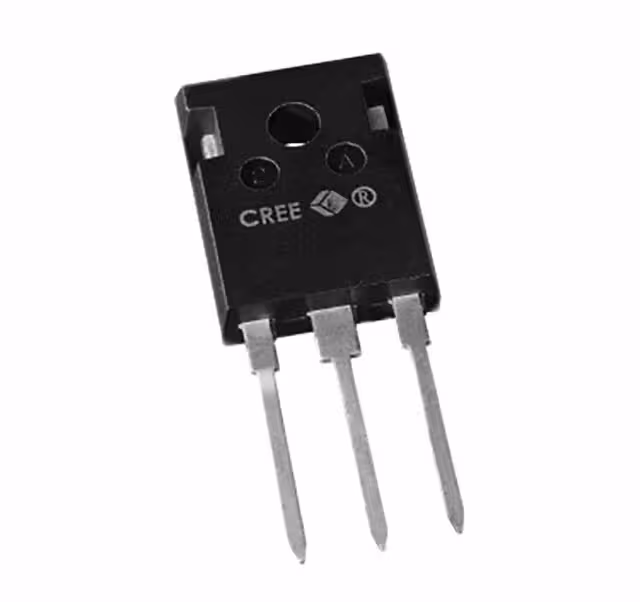

DIODE SIL CARBIDE 650V TO247-3
All alternatives
View full reportTechnical parameters
Key specs
Reverse voltage650 V
Forward voltage1.8 VMax · 16 A
TypeSchottky
| Power | |
|---|---|
| Current - Reverse Leakage @ Vr | 95 µA @ 650 V |
| Voltage - DC Reverse (Vr) (Max) | 650 V |
| Voltage - Forward (Vf) (Max) @ If | 1.8 V @ 16 A |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature - Junction | -55°C~175°C |
| Package | Tube |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247-3 |
| Other | |
| Base Product Number | C3D16065 |
| Diode Type | Silicon Carbide Schottky |
| Mfr | Wolfspeed, Inc. |
| Product Status | Active |
| Reverse Recovery Time (trr) | 0 ns |
| Series | Z-Rec® |
| Speed | No Recovery Time > 500mA (Io) |
