Wolfspeed, Inc.United States

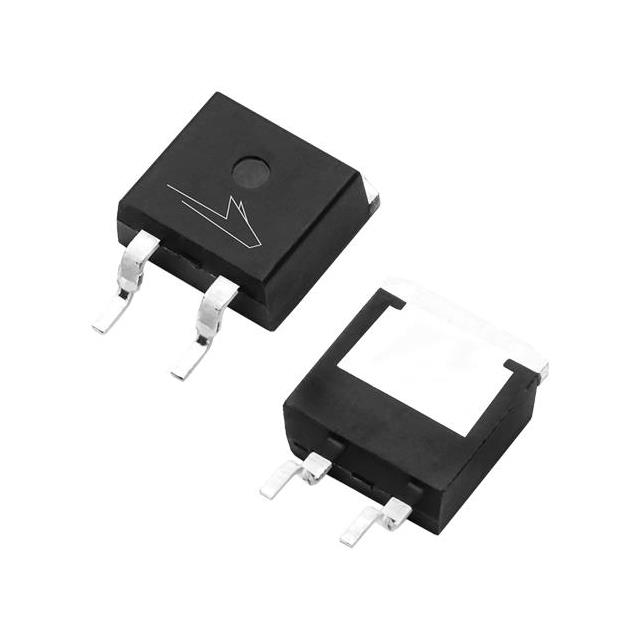

DIODE SIL CARB 650V 30A TO263-2
All alternatives
View full reportTechnical parameters
Key specs
Reverse voltage650 V
Average rectified current30 A
Forward voltage1.4 VMax · 8 A
TypeSchottky
| Power | |
|---|---|
| Current - Average Rectified (Io) | 30A |
| Current - Reverse Leakage @ Vr | 20 µA @ 650 V |
| Voltage - DC Reverse (Vr) (Max) | 650 V |
| Voltage - Forward (Vf) (Max) @ If | 1.4 V @ 8 A |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Package | Tube |
| Package / Case | - |
| Supplier Device Package | TO-263-2 |
| Other | |
| Capacitance @ Vr, F | 518pF @ 0V, 1MHz |
| Mfr | Wolfspeed, Inc. |
| Product Status | Active |
| Reverse Recovery Time (trr) | 0 ns |
| Series | - |
| Speed | No Recovery Time > 500mA (Io) |
| Technology | SiC (Silicon Carbide) Schottky |
Documents
DatasheetDatasheet · 513.5 KB · 2026-09-22Application NoteApplication Note · 9.9 MB · 2026-09-22MarketingMarketing · 5.2 MB · 2026-09-22Package DrawingPackage Drawing · 3.2 MB · 2026-09-22Application NoteApplication Note · 2.4 MB · 2026-09-22Application NoteApplication Note · 1.9 MB · 2026-09-22Package DrawingPackage Drawing · 1.8 MB · 2026-09-22Application NoteApplication Note · 1.1 MB · 2026-09-22Package DrawingPackage Drawing · 780.5 KB · 2026-09-22Application NoteApplication Note · 748.8 KB · 2026-09-22Application NoteApplication Note · 410.6 KB · 2026-09-22MarketingMarketing · 191.4 KB · 2026-09-22
Open document center
