Crystek CorporationUnited States
XTAL OSC XO 100.0000MHZ HCMOS
All alternatives
View full reportTechnical parameters
Key specs
Frequency100 MHz
Frequency stability50 ppm
Supply voltage≥ 3.3 V
Output typeCMOS
| Power | |
|---|---|
| Current - Supply (Disable) (Max) | - |
| Current - Supply (Max) | 25mA |
| Voltage - Supply | 3.3V |
| AC and DC characteristics | |
| Frequency | 100 MHz |
| Frequency Stability | ±50ppm |
| Environment and package | |

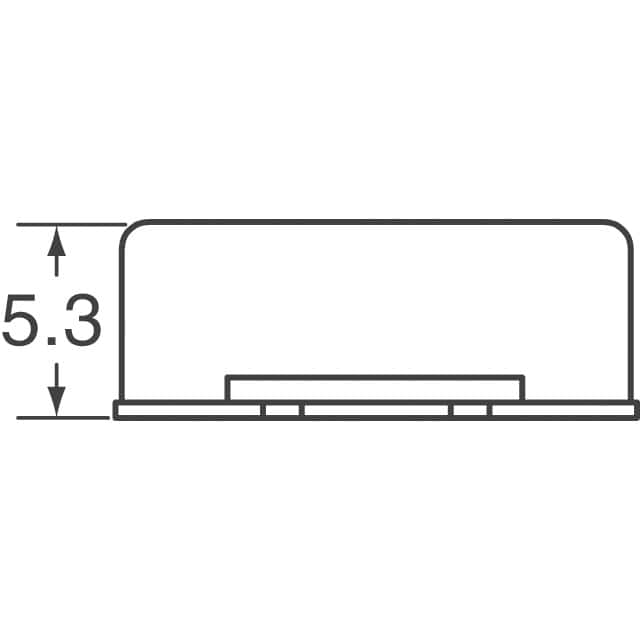

| Height - Seated (Max) | 0.209" (5.30mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C~70°C |
| Package | Strip |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.559" L x 0.360" W (14.20mm x 9.14mm) |
| Other | |
| Absolute Pull Range (APR) | - |
| Base Resonator | Crystal |
| Function | - |
| Mfr | Crystek Corporation |
| Output | HCMOS |
| Product Status | Active |
| Ratings | - |
| Series | CCHD-950 |
| Type | XO (Standard) |
