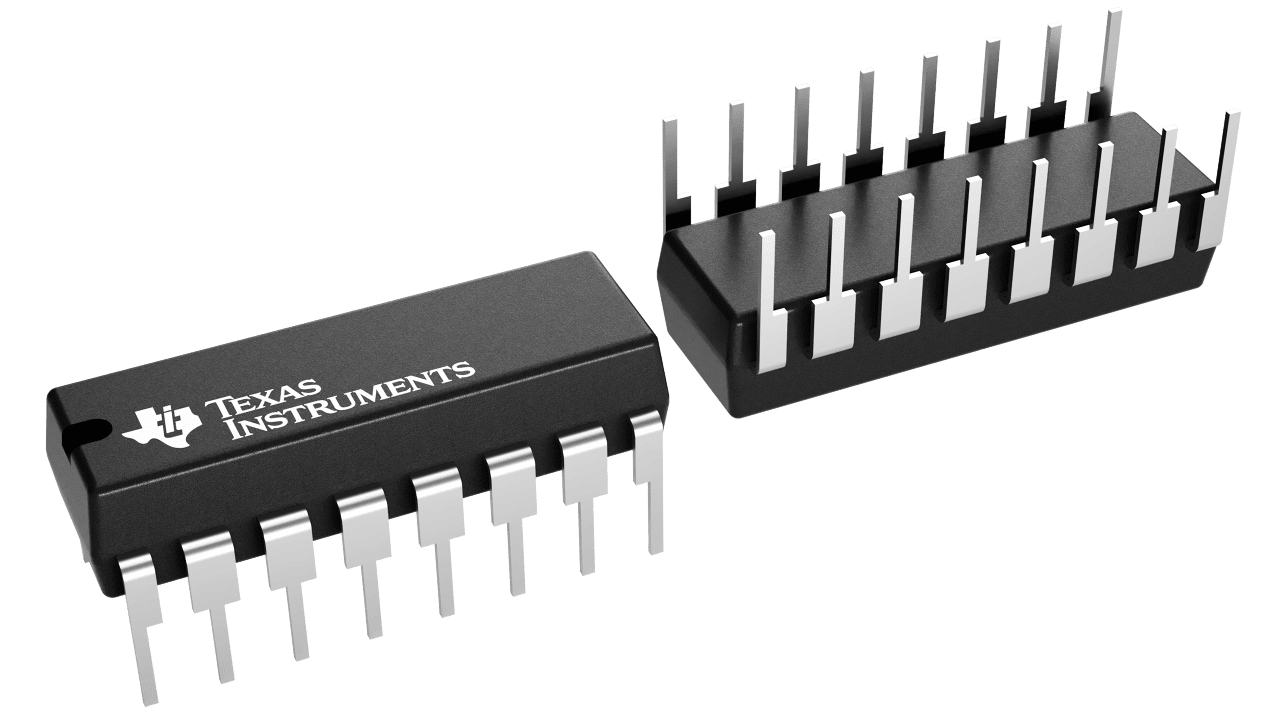

CD4060B consists of an oscillator section and 14 ripple-carry binary counter stages. The oscillator configuration allows design of either RC or crystal oscillator circuits. A RESET input is provided which resets the counter to the all-O's state and disables the oscillator. A high level on the RESET line accomplishes the reset function. All counter stages are master-slave flip-flops. The state of the counter is advanced one step in binary order on the negative transition of O ). All inputs and outputs are fully buffered. Schmitt trigger action on the input-pulse line permits unlimited input-pulse rise and fall times. The CD4060B-series types are supplied in 16-lead hermetic dual-in-line ceramic packages (F3A suffix), 16-lead dual-in-line plastic packages (E suffix), 16-lead small-outline packages (M, M96, MT and NSR suffixes), and 16-lead thin shrink small-outline packages (PW and PWR suffixes).
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Operating temperature range (°C) | -55 to 125 |
| Other | |
| Bits (#) | 10 |
| Features | Balanced outputs, Positive input clamp diode, Standard speed (tpd > 50ns) |
| Function | Counter |
| Input type | Standard CMOS |
| Output type | Push-Pull |
| Rating | Catalog |
| Technology family | CD4000 |
