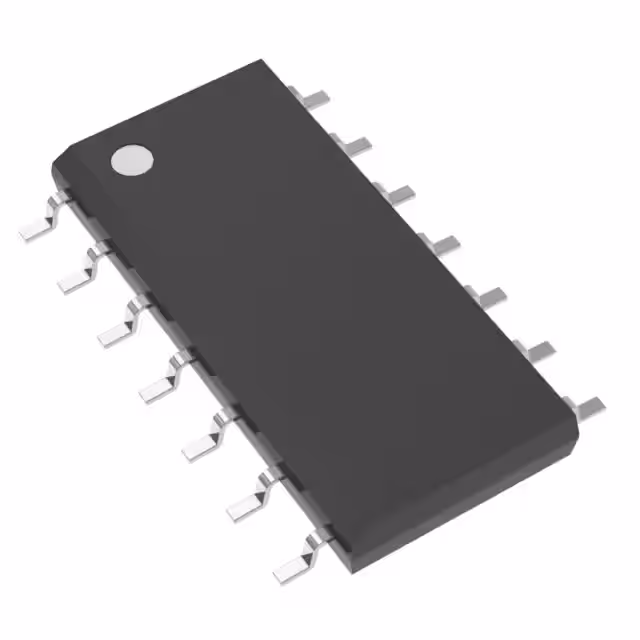

IC EXPND AND-ORINV GATE 14-SOIC
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Output High, Low | 6.8mA, 6.8mA |
| Voltage - Supply | 3V ~ 18V |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~125°C |
| Package | Tape & Reel (TR) |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SOIC |
| Other | |
| Base Product Number | CD4086 |
| Logic Type | AND/OR/INVERT Gate |
| Mfr | Texas Instruments |
| Number of Circuits | 1 |
| Number of Inputs | 8 Input (2, 2, 2, 2) |
| Output Type | Single-Ended |
| Product Status | Obsolete |
| Schmitt Trigger Input | No |
| Series | 4000B |
