CUI DevicesUnited States
BUZZER MAGNETIC 5V 12MM TH
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Supply | 35mA |
| Voltage Range | 4 ~ 7V |
| Voltage - Rated | 5 V |
| AC and DC characteristics | |
| Frequency | 2.3kHz |
| Environment and package | |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -30°C~70°C |
| Package | Tray |

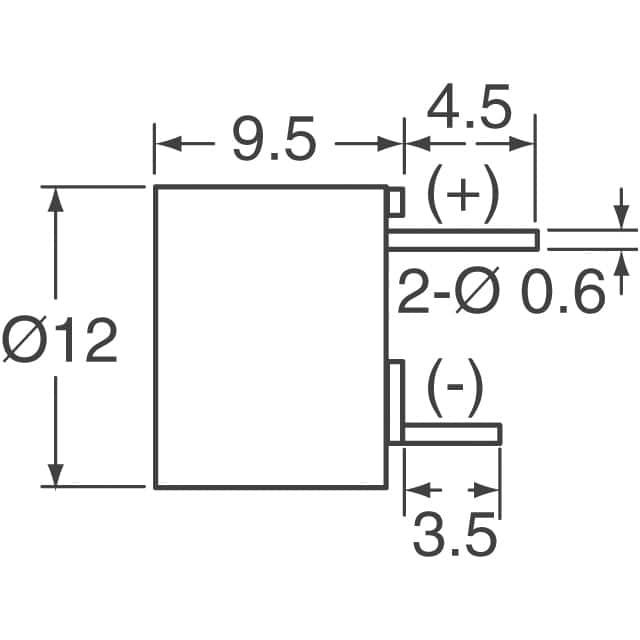

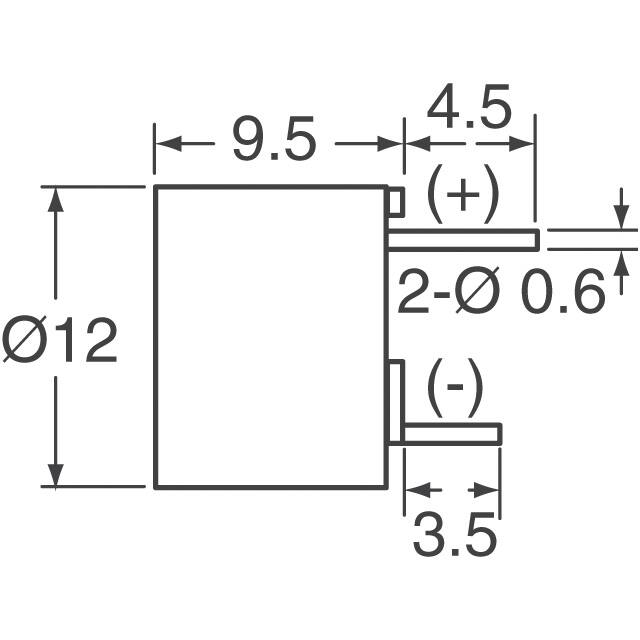

| Size / Dimension | 0.472" Dia (12.00mm) |
| Other | |
| Approval Agency | - |
| Driver Circuitry | Indicator, Internally Driven |
| Duration | - |
| Input Type | DC |
| Mfr | CUI Devices |
| Operating Mode | Single Tone |
| Port Location | Top |
| Product Status | Obsolete |
| Ratings | Washable |
| Series | CEM |
| Sound Pressure Level (SPL) | 85dB @ 5V, 10cm |
| Technology | Magnetic |
| Termination | PC Pins |
