SL POWER / Advanced EnergyUnited States

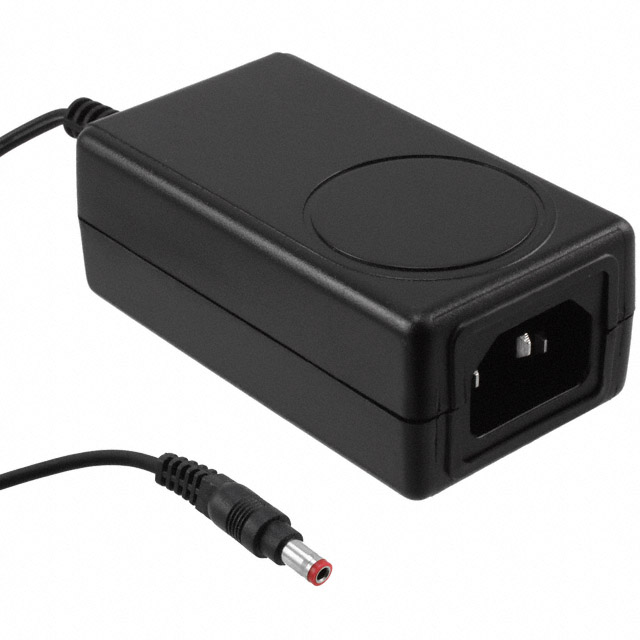

CENB1010A0903F01
AC DC Desktop, Wall Power AdaptersAC/DC DESKTOP ADAPTER 9V 10W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage100 ~ 240 V
Output voltage9 V
Output current1.1 AMax
Power10 WMax
| Power | |
|---|---|
| Current - Output (Max) | 1.1A |
| No Load Power Consumption | 300mW (Max) |
| Power (Watts) | 10 W |
| Voltage - Input | 100 ~ 240 VAC |
| Voltage - Output | 9V |
| Environment and package | |
| Operating Temperature | 0°C ~ 40°C |
| Size / Dimension | 3.31" L x 1.85" W x 1.27" H (84.0mm x 47.0mm x 32.3mm) |
| Other | |
| Applications | ITE (Commercial) |
| Approval Agency | CE, cULus |
| Cord Length | 59" (1.50m) |
| Efficiency | Level V |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord (Sold Separately) |
| Manufacturer | SL POWER / Advanced Energy |
| Output Connector | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm |
| Packaging | Box |
| Part Status | Obsolete |
| Polarization | Positive Center |
| Region Utilized | International |
| Series | CENB1010 (10W) |
| Weight | 0.243 lb (110.22 g) |
Documents
No documents are linked to this part yet.
