SL POWER / Advanced EnergyUnited States
CENB1030A1803Q01

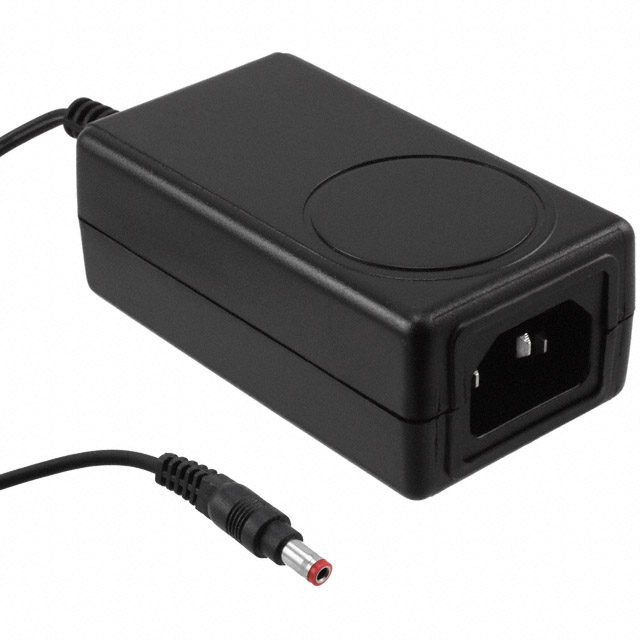

AC DC Desktop, Wall Power AdaptersAC/DC DESKTOP ADAPTER 18V 30W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage100 ~ 240 V
Output voltage18 V
Output current1.67 AMax
Power30 WMax
| Power | |
|---|---|
| Current - Output (Max) | 1.67A |
| No Load Power Consumption | 300mW (Max) |
| Power (Watts) | 30 W |
| Voltage - Input | 100 ~ 240 VAC |
| Voltage - Output | 18V |
| Environment and package | |
| Operating Temperature | 0°C ~ 40°C |
| Size / Dimension | 3.76" L x 2.13" W x 1.22" H (95.5mm x 54.0mm x 31.0mm) |
| Other | |
| Applications | ITE (Commercial) |
| Approval Agency | CE, cULus |
| Cord Length | 59" (1.50m) |
| Efficiency | Level V |
| Form | Desktop (Class II) |
| Input Connector | IEC 320-C18 |
| Input Type | Cord (Sold Separately) |
| Manufacturer | SL POWER / Advanced Energy |
| Output Connector | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm |
| Packaging | Bulk |
| Part Status | Obsolete |
| Polarization | Positive Center |
| Region Utilized | International |
| Series | CENB1030 (30W) |
| Weight | 0.441 lb (200.03 g) |
