SL POWER / Advanced EnergyUnited States

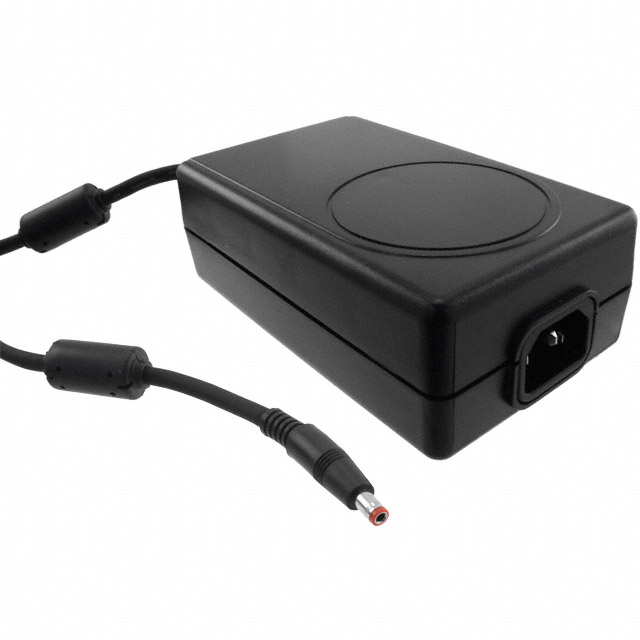

CENB1090A1803F01
AC DC Desktop, Wall Power AdaptersAC/DC DESKTOP ADAPTER 18V 90W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage100 ~ 240 V
Output voltage18 V
Output current5 AMax
Power90 WMax
| Power | |
|---|---|
| Current - Output (Max) | 5A |
| No Load Power Consumption | 300mW (Max) |
| Power (Watts) | 90 W |
| Voltage - Input | 100 ~ 240 VAC |
| Voltage - Output | 18V |
| Environment and package | |
| Operating Temperature | 0°C ~ 40°C |
| Size / Dimension | 5.08" L x 3.05" W x 1.59" H (129.0mm x 77.5mm x 40.5mm) |
| Other | |
| Applications | ITE (Commercial) |
| Approval Agency | CE, cULus |
| Cord Length | 47.2" (1.20m) |
| Efficiency | Level V |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord (Sold Separately) |
| Manufacturer | SL POWER / Advanced Energy |
| Output Connector | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm |
| Packaging | Bulk |
| Part Status | Obsolete |
| Polarization | Positive Center |
| Region Utilized | International |
| Series | CENB1090 (90W) |
| Weight | 1.3 lbs (589.7 g) |
Documents
No documents are linked to this part yet.
