Cvilux USATaiwan, China

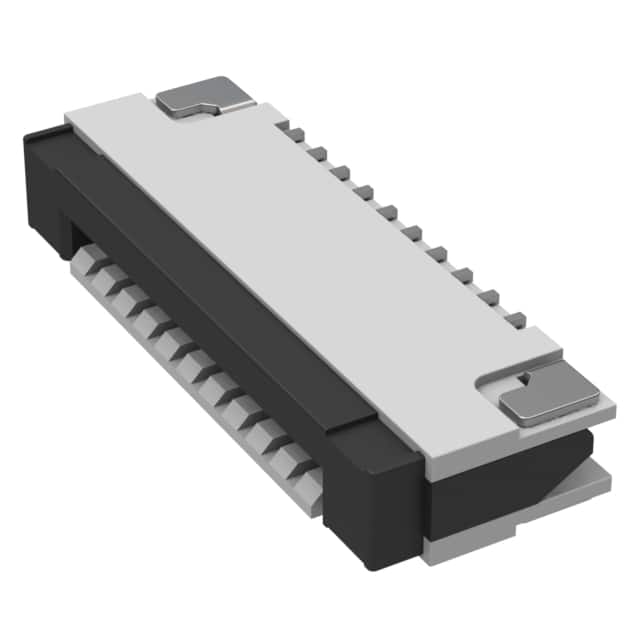

CF07 SERIES 1.00MM(.039") ZIF SI
All alternatives
View full reportTechnical parameters
Key specs
Positions10
Pitch1 mm
Current rating1 AMax
| Power | |
|---|---|
| Current Rating (Amps) | 1A |
| Voltage Rating | 100V |
| Environment and package | |
| Height Above Board | 0.102" (2.60mm) |
| Mounting Type | Surface Mount, Right Angle |
| Operating Temperature | -25°C~85°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Other | |
| Actuator Color | Black |
| Actuator Material | Thermoplastic, Halogen Free |
| Cable End Type | Straight, Tapered |
| Connector/Contact Type | Contacts, Bottom |
| Contact Finish | Tin |
| Contact Finish Thickness | - |
| Contact Material | Copper Alloy |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| FFC, FCB Thickness | 0.30mm |
| Flat Flex Type | FFC, FPC |
| Housing Color | Natural |
| Housing Material | Thermoplastic, Halogen Free |
| Locking Feature | Slide Lock |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | - |
| Mfr | Cvilux USA |
| Number of Positions | 10 |
| Pitch | 0.039" (1.00mm) |
| Product Status | Active |
| Series | CF07 |
| Termination | Solder |
