WCH(南京沁恒)China
CH32M103 is an industrial-grade motor microcontroller designed based on QingKe RISC-V core.CH32M103 has built-in 24V 3-phase P+N gate drive and high-voltage LDOs, built-in USB and PD PHY, support for PDUSB, including USB Host and USB Device functions, USB PD and Type-C fast charging functions, built-in low-power timer, provides a set of OPAs, 2 sets of CMPs, 4 sets of USART, 2×I2C interfaces, 1 SPI interface, 1 CAN interface, multi-group timer, 12-bit ADC, 10-channel touch-key and other rich peripheral resources.
All alternatives

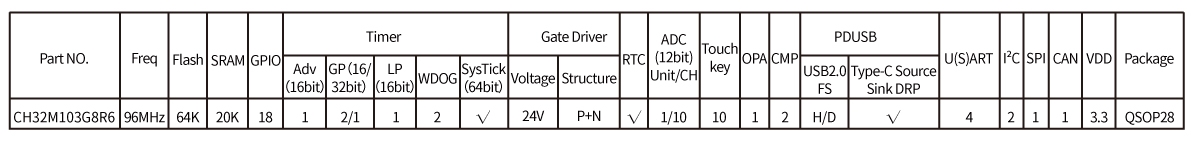

View full reportTechnical parameters
| Environment and package | |
|---|---|
| Package | QSOP28 |
| Other | |
| ADC | 10*12b |
| CAP/PWM | 11/11 |
| CMP | 2 |
| Feature | 24V PN gate drive+high voltage LDO; Low dynamic/static power consumption, PDUSB |
| Flash | 64K |
| Freq | 96MHz |
| I/O | 18 |
| OPA | 1 |
| Others | 3 Pair PN Gate driver; LPTIM/CAN/Type-C PD |
| RAM | 20K |
| SPI | 1 |
| Timer | 1*32b; 4*16b |
| UART | 4 |
| USB H/D(include PHY) | 12Mbps |
| VDD | VHV; up to 28 |
