KnowlesUnited States

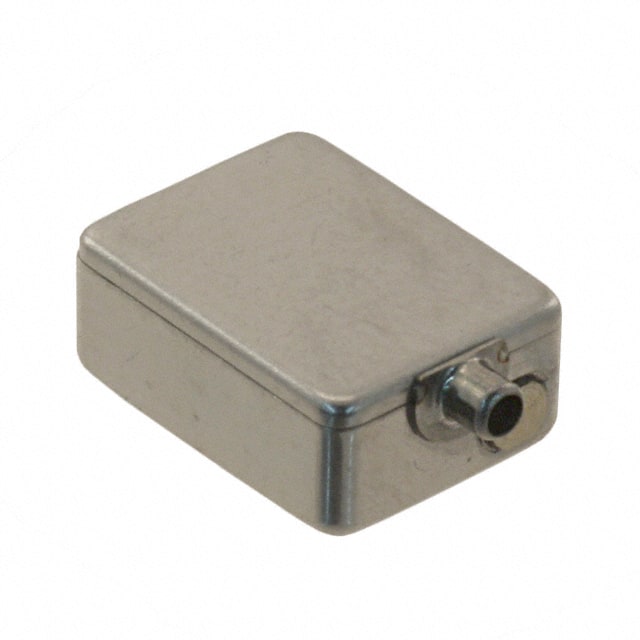

SPEAKER 68OHM SIDE PORT 128DB
All alternatives
View full reportTechnical parameters
| AC and DC characteristics | |
|---|---|
| Frequency Range | 200 Hz ~ 5.5 kHz |
| Frequency - Self Resonant | - |
| Impedance | 47 Ohms |
| Environment and package | |
| Height - Seated (Max) | 0.165" (4.19mm) |
| Package | Bulk |
| Size / Dimension | 0.373" L x 0.283" W (9.47mm x 7.18mm) |
| Other | |
| Efficiency - dBA | 131.50 |
| Efficiency - Testing | - |
| Efficiency - Type | Sensitivity |
| Ingress Protection | - |
| Material - Cone | - |
| Material - Magnet | - |
| Mfr | Knowles |
| Port Location | Top |
| Product Status | Obsolete |
| Ratings | - |
| Series | CI |
| Shape | Rectangular |
| Technology | Magnetic |
| Termination | Solder Pads |
| Type | Receiver, Balanced Armature |
