SL POWER / Advanced EnergyUnited States

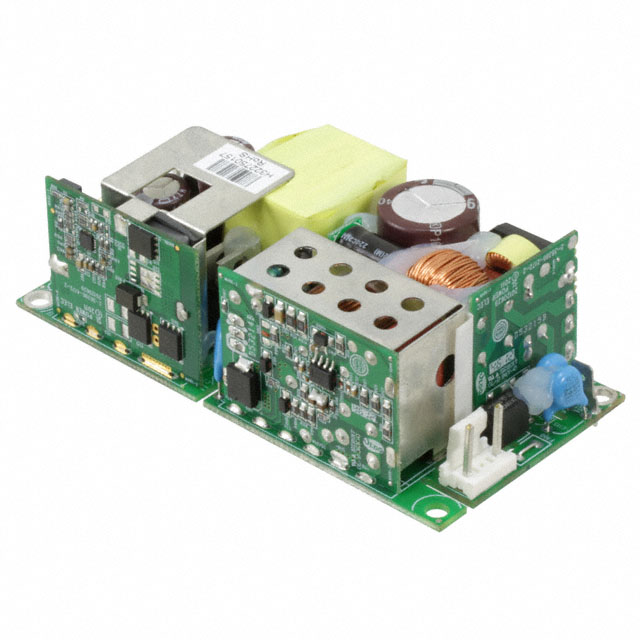

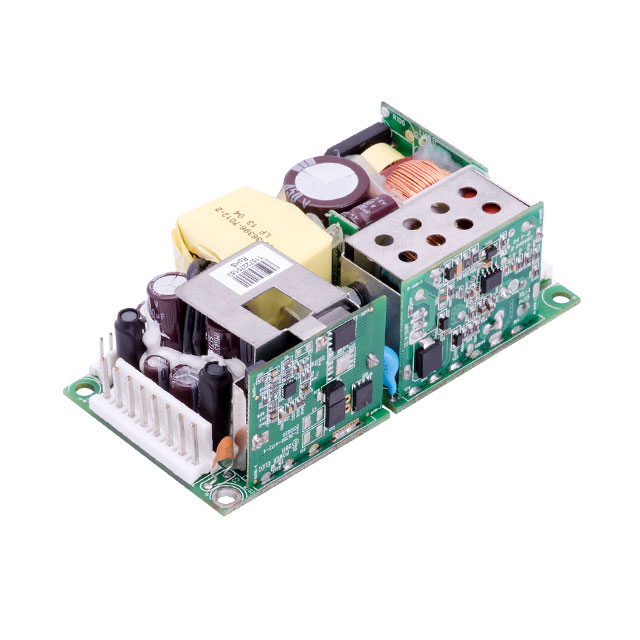

CINT3110A1708K01
AC DC ConvertersAC/DC CONVERTER 5V +/-15V 80W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage90 ~ 264 V
Output voltage5 V
Output current14 AMax
Power80 WMax
Outputs3
| Power | |
|---|---|
| Current - Output 1 | 14 A |
| Current - Output 2 | 4.5 A |
| Current - Output 3 | 1 A |
| Power (Watts) | 80W (110W Forced Air) |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Isolation | 4 kV |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 15V |
| Voltage - Output 3 | -15V |
| Voltage - Output 4 | - |
| Voltage - Output 6 | - |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | -10°C ~ 70°C (With Derating) |
| Size / Dimension | 4.00" L x 2.00" W x 1.30" H (101.6mm x 50.8mm x 33.0mm) |
| Other | |
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Base Product Number | CINT3110 |
| Efficiency | 87% |
| Features | Adjustable Output, DC Input Capable, Remote Sense, Universal Input |
| Mfr | SL POWER / Advanced Energy |
| Minimum Load Required | No |
| Number of Outputs | 3 |
| Packaging | Box |
| Part Status | Active |
| Series | CINT3110 (110W) |
| Type | Open Frame |
