CitizenJapan

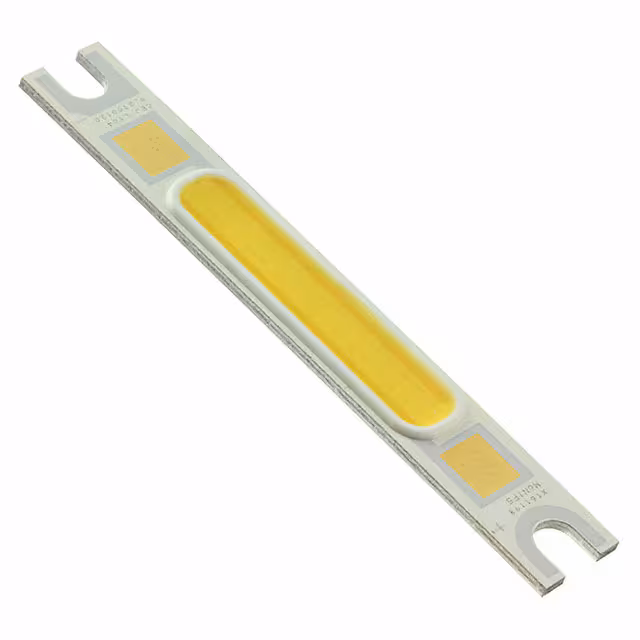

COB LED 3500K 80CRI 630LM
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Max | 1.44A |
| Current - Test | 700mA |
| Lumens/Watt @ Current - Test | 98 lm/W |
| Voltage - Forward (Vf) (Typ) | 9.2V |
| Environment and package | |
| Height | 1.35mm |
| Luminous Flux @ Current/Temperature | 630lm(Typ) |
| Package | Tray |
| Size / Dimension | 50.00mm L x 7.00mm W |
| Temperature - Test | 25°C |
| Other | |
| Base Product Number | CL-L104 |
| CCT (K) | 3500K 3-Step MacAdam Ellipse |
| Color | White, Warm |
| Configuration | Rectangle |
| CRI (Color Rendering Index) | 85 (Typ) |
| Features | - |
| Lens Type | Flat |
| Light Emitting Surface (LES) | - |
| Mfr | Citizen |
| Product Status | Obsolete |
| Series | CL-L104 |
| Type | Chip On Board (COB) |
| Viewing Angle | - |
| Wavelength | - |
Documents
No documents are linked to this part yet.
