CitizenJapan

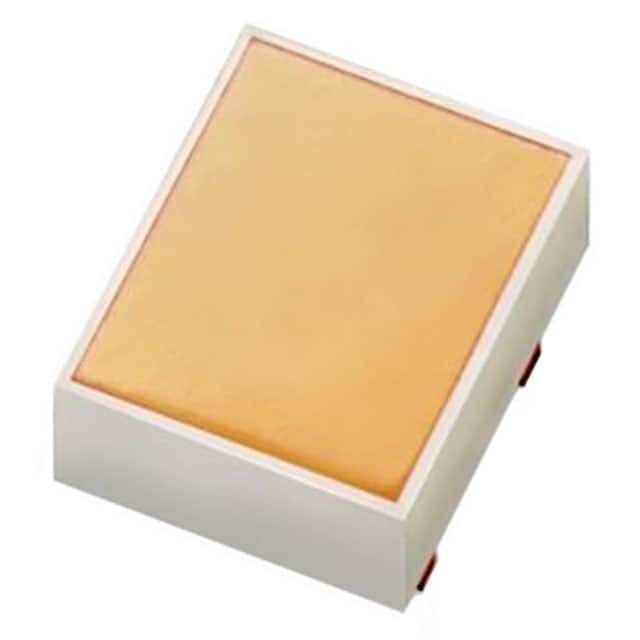

SMD LED 5000K 80CRI 20.8LM
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Max | 85mA |
| Current - Test | 50mA |
| Flux @ 25°C, Current - Test | 21lm (Typ) |
| Flux @ 85°C, Current - Test | - |
| Lumens/Watt @ Current - Test | 139 lm/W |
| Voltage - Forward (Vf) (Typ) | 3.02V |
| Environment and package | |
| Height - Seated (Max) | 0.033" (0.85mm) |
| Mounting Type | Surface Mount |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 0806 (2016 Metric) |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Thermal Resistance of Package | 45°C/W |
| Other | |
| CCT (K) | 5000K 3-Step MacAdam Ellipse |
| Color | White, Cool |
| CRI (Color Rendering Index) | 80 |
| Mfr | Citizen |
| Product Status | Obsolete |
| Series | - |
| Viewing Angle | - |
