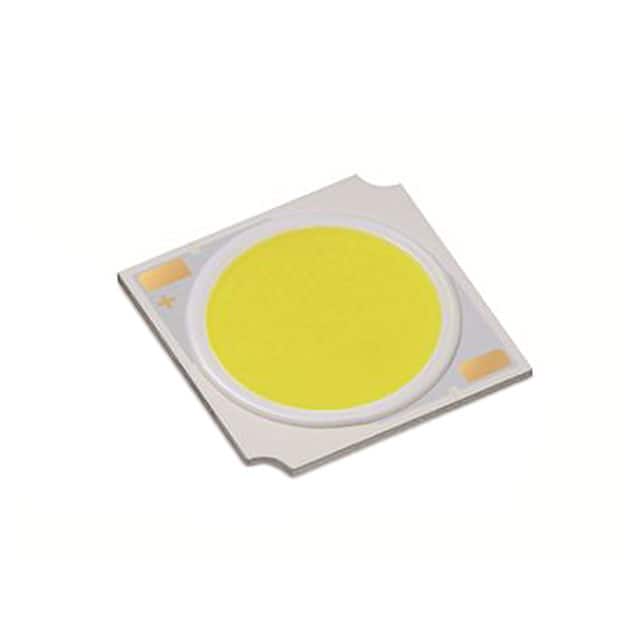

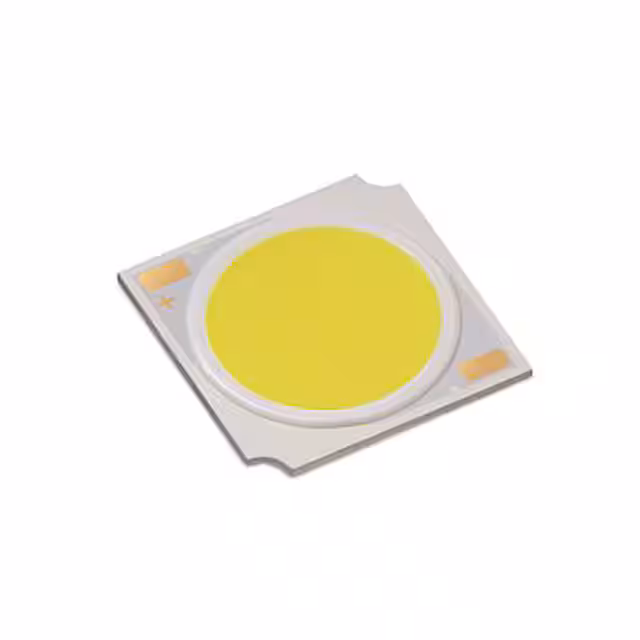

CLU026-1204C1-273H7G5
CitizenJapan

CLU026-1204C1-273H7G5

ObsoleteLED Lighting - COBs, Engines, Modules, Strips

COB LED 2700K 97CRI 1198LM

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Current - Max920mA
Current - Test360mA
Lumens/Watt @ Current - Test96 lm/W
Voltage - Forward (Vf) (Typ)34.6V
Environment and package
Height1.40mm
Luminous Flux @ Current/Temperature1198lm(Typ)
PackageTray
Size / Dimension13.50mm L x 13.50mm W
Temperature - Test85°C
Other
Base Product NumberCLU026
CCT (K)2700K 3-Step MacAdam Ellipse
ColorWhite, Warm
ConfigurationSquare
CRI (Color Rendering Index)97 (Typ)
Features-
Lens TypeFlat
Light Emitting Surface (LES)9.80mm Dia
MfrCitizen
Product StatusObsolete
Series-
TypeChip On Board (COB)
Viewing Angle-
Wavelength-

Documents

No documents are linked to this part yet.
