CLU046-1812C1-403H5G3
CitizenJapan

CLU046-1812C1-403H5G3

ObsoleteLED Lighting - COBs, Engines, Modules, Strips

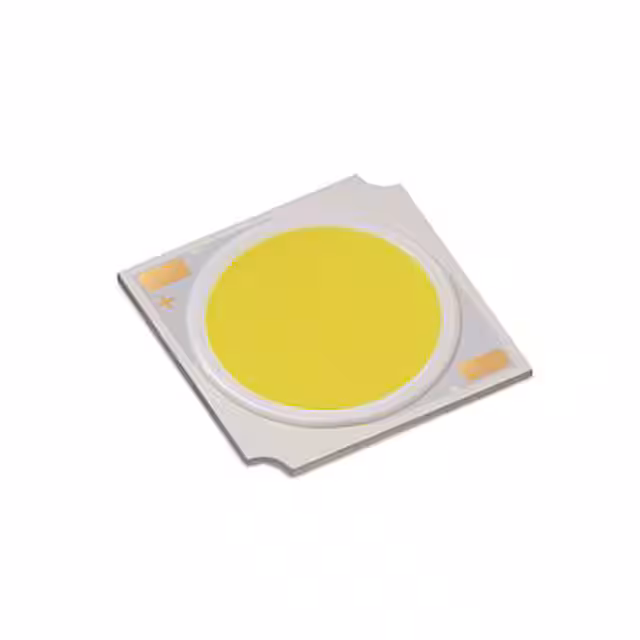

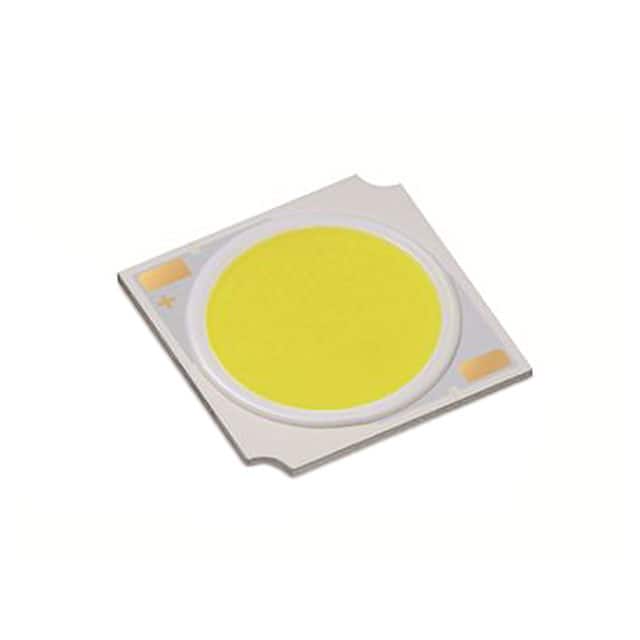

COB LED 4000K 90CRI 6596LM

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Current - Max2.76A
Current - Test1.08A
Lumens/Watt @ Current - Test117 lm/W
Voltage - Forward (Vf) (Typ)52V
Environment and package
Height1.40mm
Luminous Flux @ Current/Temperature6596lm(Typ)
PackageTray
Size / Dimension28.00mm L x 28.00mm W
Temperature - Test85°C
Other
Base Product NumberCLU046
CCT (K)4000K 3-Step MacAdam Ellipse
ColorWhite, Neutral
ConfigurationSquare
CRI (Color Rendering Index)90
Features-
Lens TypeFlat
Light Emitting Surface (LES)22.00mm Dia
MfrCitizen
Product StatusObsolete
Series-
TypeChip On Board (COB)
Viewing Angle-
Wavelength-

Documents

No documents are linked to this part yet.
