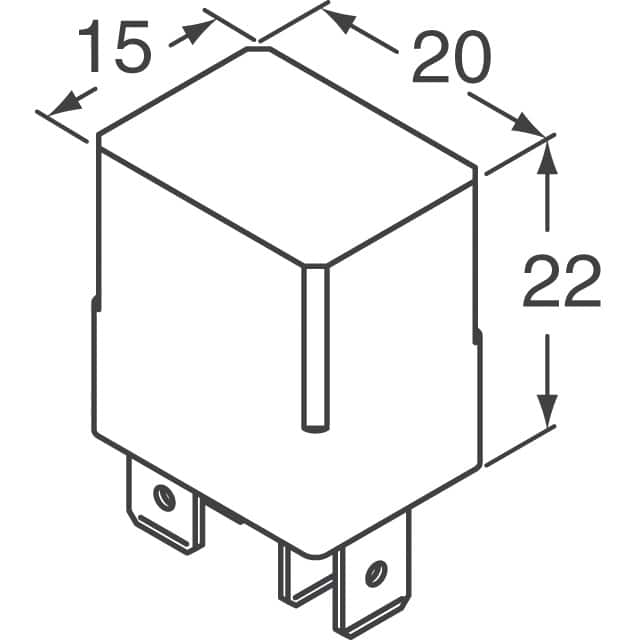

CM1A-P-12V
PanasonicJapan

CM1A-P-12V

ObsoleteAutomotive Relays

RELAY AUTOMOTIVE SPST 35A 12V

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Coil Current125 mA
Coil Power1.5W
Coil Voltage12VDC
Contact Rating (Current)35 A
Must Operate Voltage7 VDC
Must Release Voltage1.2 VDC
Switching Voltage14VDC - Nom
Environment and package
Mounting TypeThrough Hole
Operating Temperature-40°C~85°C
PackageBulk
Other
Base Product NumberCM1A
Coil Resistance96 Ohms
Coil TypeNon Latching
Contact FormSPST-NO (1 Form A)
Contact MaterialSilver Alloy, Cadmium Free
FeaturesSealed - Fully
MfrPanasonic Electric Works
Operate Time10 ms
Product StatusObsolete
Release Time10 ms
SeriesCM
Termination StylePC Pin

Documents

No documents are linked to this part yet.
