Central Semiconductor CorpUnited States

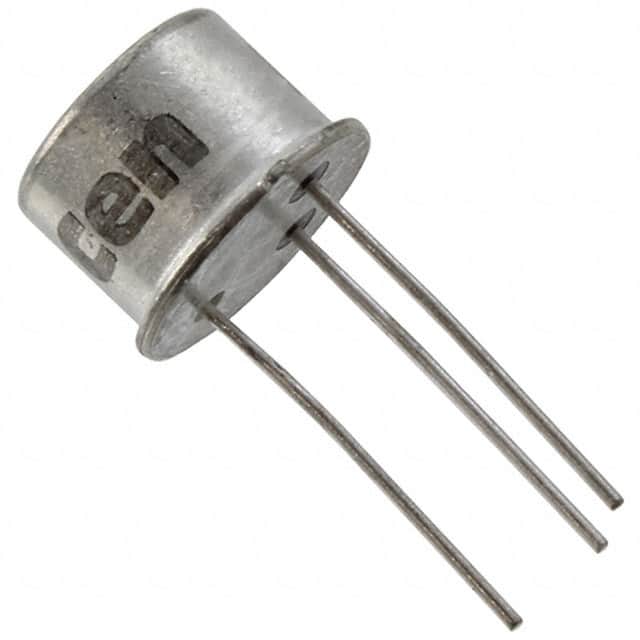

RF TRANSISTOR TO-39
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Collector (Ic) (Max) | 500mA |
| Power - Max | 1W |
| Voltage - Collector Emitter Breakdown (Max) | 30V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 25 @ 100mA, 2V |
| Frequency - Transition | 1.3GHz |
| Gain | - |
| Noise Figure (dB Typ @ f) | - |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -65°C~200°C(TJ) |
| Package | Bulk |
| Package / Case | TO-205AD, TO-39-3 Metal Can |
| Supplier Device Package | TO-39 |
| Other | |
| Mfr | Central Semiconductor Corp |
| Product Status | Obsolete |
| Series | - |
| Transistor Type | PNP |
