API Delevan Inc.United States
CMC 68UH 2A 2LN SMD
All alternatives
View full reportTechnical parameters
Key specs
Number of lines2
Current rating2 AMax
DC resistance20 mΩMax
| Power | |
|---|---|
| Current Rating (Max) | 2A |
| Voltage Rating - AC | - |
| Voltage Rating - DC | - |
| AC and DC characteristics | |
| Inductance @ Frequency | 68 µH @ 10 kHz |
| Environment and package | |

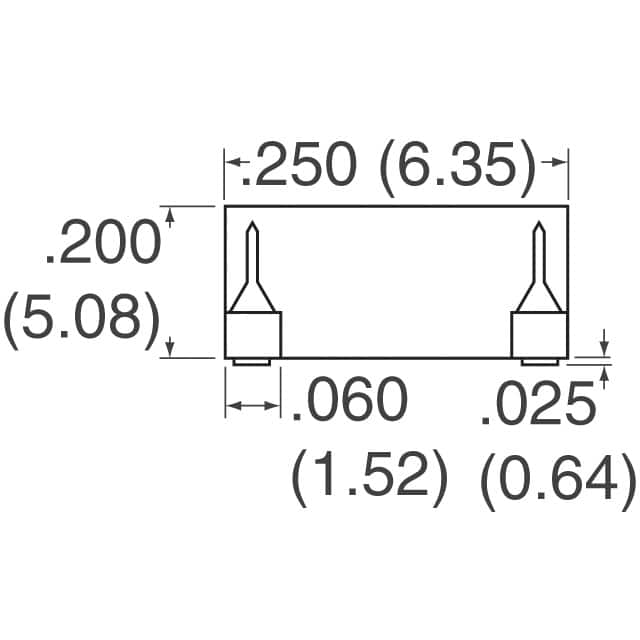

| Height (Max) | 0.210" (5.33mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~105°C |
| Package | Bulk |

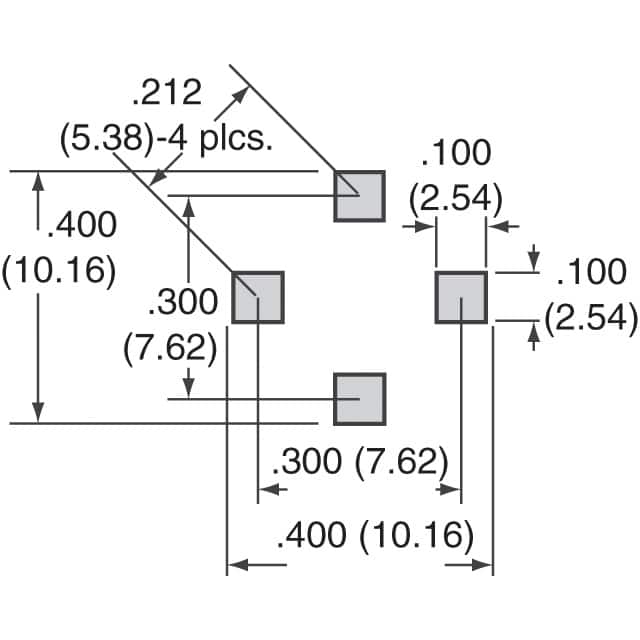

| Package / Case | Horizontal, 4 PC Pad |

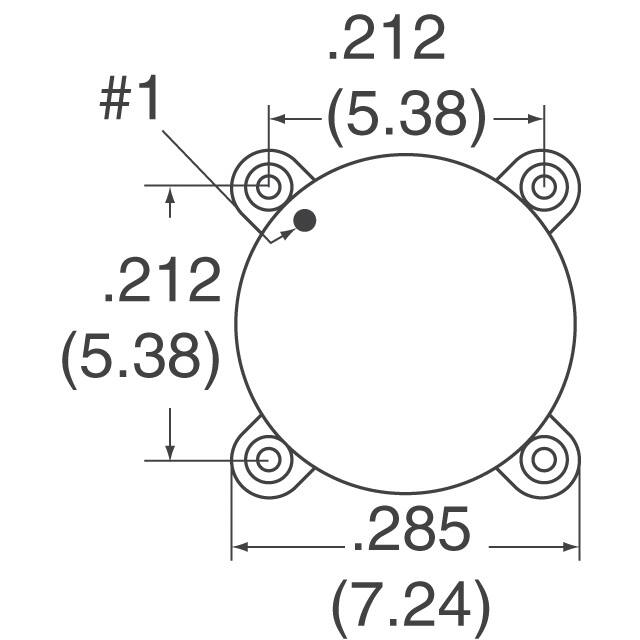

| Size / Dimension | 0.285" L x 0.285" W (7.24mm x 7.24mm) |
| Other | |
| Approval Agency | - |
| DC Resistance (DCR) (Max) | 20mOhm |
| Features | - |
| Filter Type | - |
| Mfr | API Delevan Inc. |

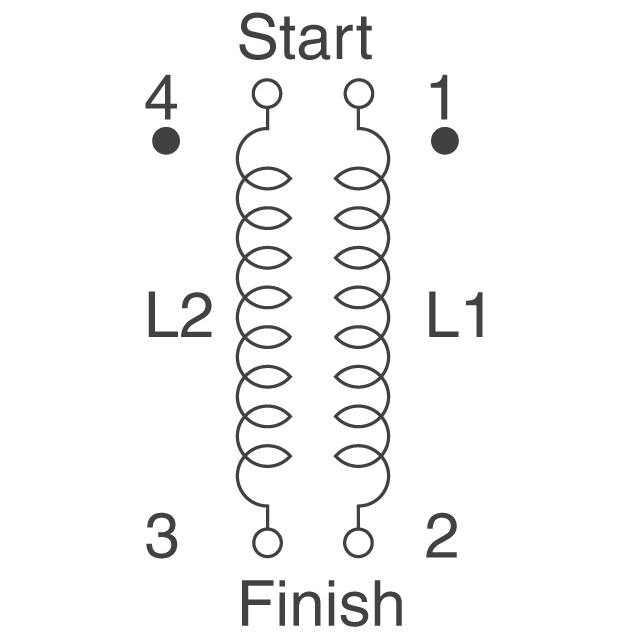

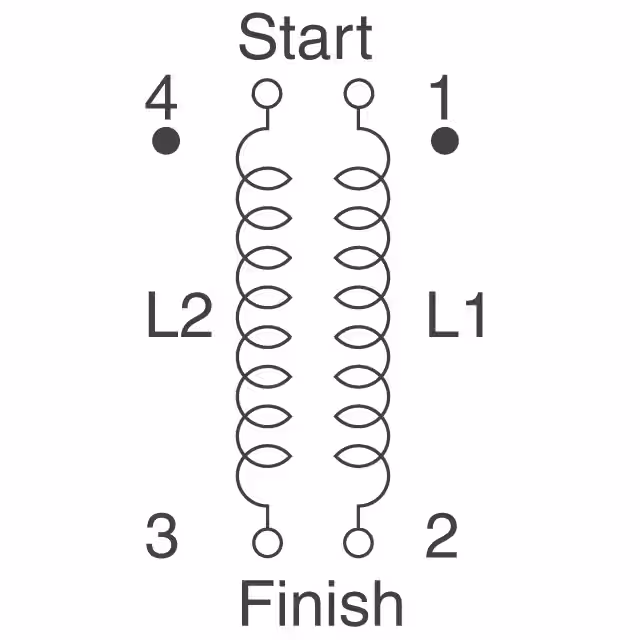

| Number of Lines | 2 |
| Product Status | Active |
| Ratings | - |
| Series | CM6149R |
