Delta Electronics/CyntecTaiwan, China

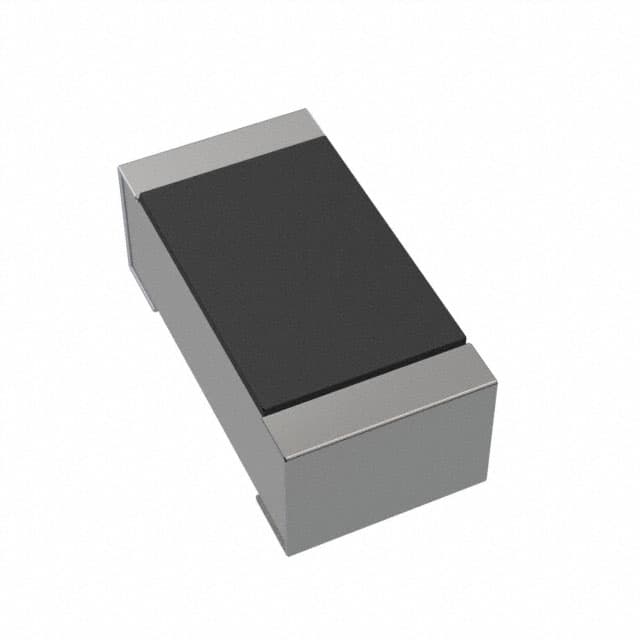

FIXED IND 6.8NH 230MA 700MOHM SM
All alternatives
View full reportTechnical parameters
Key specs
Inductance6.8 nH
Rated current230 mAMax
DC resistance700 mΩMax
| Power | |
|---|---|
| Current Rating (Amps) | 230 mA |
| Current - Saturation (Isat) | - |
| AC and DC characteristics | |
| Frequency - Self Resonant | 5.5GHz |
| Inductance Frequency - Test | 100 MHz |
| Environment and package | |
| Height - Seated (Max) | 0.013" (0.33mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 0201 (0603 Metric) |
| Size / Dimension | 0.024" L x 0.012" W (0.61mm x 0.31mm) |
| Supplier Device Package | 0201 |
| Other | |
| DC Resistance (DCR) | 700mOhm Max |
| Features | - |
| Inductance | 6.8 nH |
| Material - Core | - |
| Mfr | Delta Electronics/Cyntec |
| Product Status | Obsolete |
| Q @ Freq | 4 @ 100MHz |
| Ratings | - |
| Series | CML0306 |
| Shielding | Shielded |
| Tolerance | ±5% |
| Type | Thin Film |
