OPTOISOLTR 5.3KV 2CH TRANS 8-DIP
All alternatives
View full reportTechnical parameters
Key specs
Channels2
Isolation voltage5.3 kV
Output typeTransistor
Current transfer ratio50 %5mA
| Power | |
|---|---|
| Current - DC Forward (If) (Max) | 60 mA |
| Current - Output / Channel | - |
| Current Transfer Ratio (Max) | 600% @ 5mA |
| Current Transfer Ratio (Min) | 50% @ 5mA |
| Number of Channels | 2 |
| Voltage - Forward (Vf) (Typ) | 1.3V |
| Voltage - Isolation | 5300Vrms |
| Voltage - Output (Max) | 70V |
| AC and DC characteristics | |
| Rise / Fall Time (Typ) | 3µs, 4.7µs |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~100°C |
| Package | Tube |

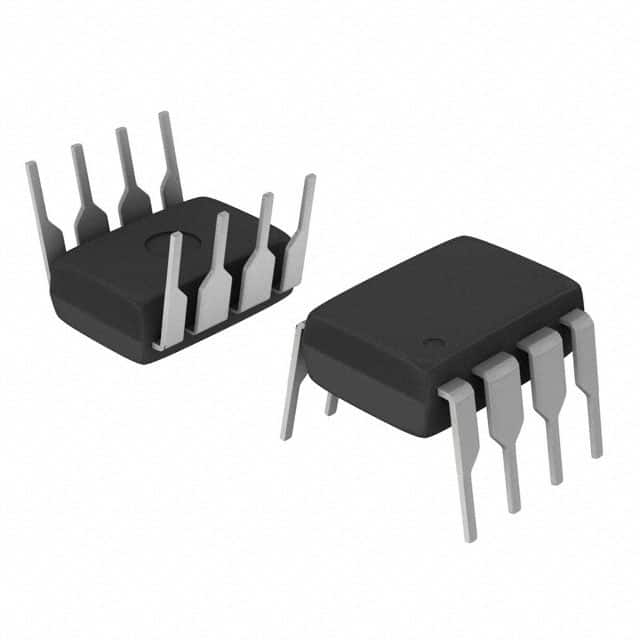

| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-DIP |
| Other | |
| Base Product Number | CNY74 |
| Input Type | DC |
| Mfr | Vishay Semiconductor Opto Division |
| Output Type | Transistor |
| Product Status | Active |
| Series | - |
| Turn On / Turn Off Time (Typ) | 6µs, 5µs |
| Vce Saturation (Max) | 500mV |
