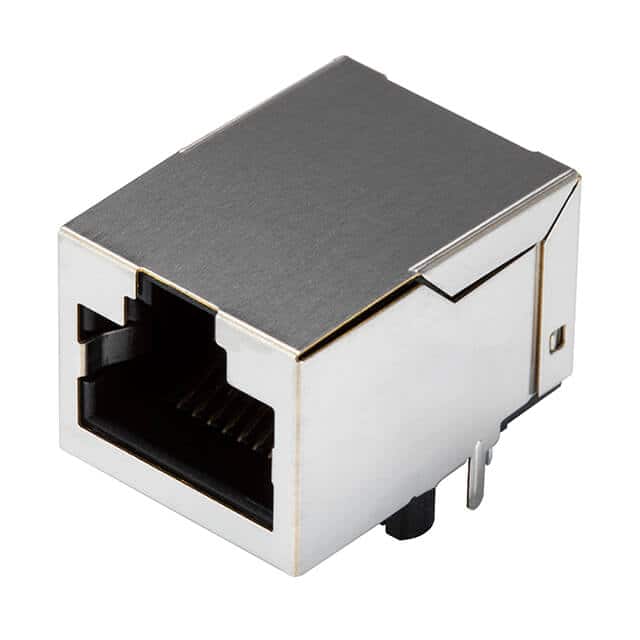

RJ JACK, 1 PORT, 8P10C, 6U, SHIE
All alternatives
View full reportTechnical parameters
Key specs
Rows1
| Environment and package | |
|---|---|
| Height Above Board | 0.535" (13.60mm) |
| Mounting Type | Through Hole |
| Operating Temperature | 0°C~70°C |
| Package | Tray |
| Other | |
| Applications | 10/100/1000 Base-T |
| Connector Type | RJ45 |
| Contact Finish | Gold |
| Contact Finish Thickness | 6.00µin (0.152µm) |
| Contact Material | Phosphor Bronze |
| Features | Board Lock |
| Housing Material | Polybutylene Terephthalate (PBT) |
| LED Color | Green, Orange - Green, Orange |
| Mfr | CUI Devices |
| Number of Cores per Jack | 8 |
| Number of Ports | 1 |
| Number of Rows | 1 |
| Orientation | 90° Angle (Right) |
| Product Status | Obsolete |
| Series | - |
| Shielding | Shielded |
| Shield Material | Brass |
| Tab Direction | Up |
| Termination | Solder |
